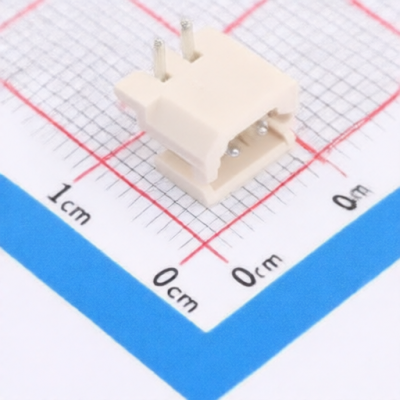

MOLEX 22057025

Name: MOLEX 22057025
Brand: MOLEX

Manufacturer: MOLEX

Mfr. Part #: 22057025

Package: Through Hole,Right Angle,P=2.5mm

Customer #:

Key Attributes: CONN HEADER TH R/A 2POS 2.5mm

Description: Connector Header 2 position 2.5mm Pitch 3A Right Angle -55℃~+105℃

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

MOLEX

Package:

Through Hole,Right Angle,P=2.5mm

Y-Width of Bottom Edge on Board:

7.9mm

Pins Structure:

1x2P

Reference Series:

Mini-SPOX(5264)

Contact Material:

Brass;PA

Color:

White

Flame Retardant Rating:

UL94V-0

Number of Rows:

Mounting Type:

Right Angle

Pitch:

2.5mm

Operating Temperature:

-55℃~+105℃

Number of PINs:

Number of PINs Per Row:

Contact Plating:

Tin

Current Rating:

Voltage Rating (Max):

250V

X-Length of Bottom Edge on Board (Spacing Line):

7.4mm

Z-Height of the Board:

4.9mm

Row Spacing:

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	1000
Sales Unit	Piece
