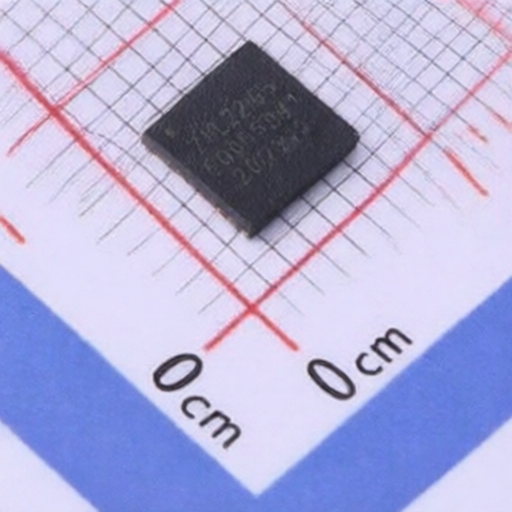

ZYMICRO ZYL2245

Name: ZYMICRO ZYL2245
Brand: ZYMICRO

Manufacturer: ZYMICRO Asian Brands

Mfr. Part #: ZYL2245

Package: QFN-32-EP(5x5)

Customer #:

Key Attributes: 14-bit, 10 MSPS single-channel ADC

Description: 14 Bit Analog to Digital Converter 1 Input QFN-32-EP(5x5)

Datasheet: ZYMICRO ZYL2245

Products Specifications

Category:

Integrated Circuits (ICs)/Data Acquisition/Analog to Digital Converters (ADC)

Manufacturer:

ZYMICRO

Package:

QFN-32-EP(5x5)

Voltage Reference Drift:

Interface:

Parallel

Full-Scale Range(FSR):

Quiescent Current (Iq):

18mA

Voltage - Supply:

1.75V~3.4V

Sampling Rate:

10MHz

Number of Channels:

Integral non - linearity:

1LSB

Temperature Range:

-40℃~+85℃

Data Rate:

Clock/Oscillator:

Clock Frequency:

10MHz;1MHz~10MHz

Voltage Reference:

Built-in;External

Resolution(Bits):

S/N Ratio:

75dB

Temperature Sensors:

ADC architecture:

Programmable Gain:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	490
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

ZYMICRO

6 Products

Asian Brand

As a wafer-free chip design company, the company is headquartered in the beautiful Binhai New District of Tianjin, and has branches in Beijing, Hangzhou, Shenzhen and other places. The company was established in 2018, and its core team and technology incubation are from the NICS group of the Department of Electronic Engineering of Tsinghua University. This group has been engaged in the research of high-performance data converter chips since 2003. Relying on the technology accumulation of Tsinghua University and more than ten years of experience in industrial-grade chip development and mass production, the company is committed to the research and development of high-performance analog core devices. It has always adhered to positive design and developed a variety of high-performance ADC/DAC data. Converter products can be widely used in key fields such as wireless communications, medical instruments, industrial control, and high-speed signal acquisition.
