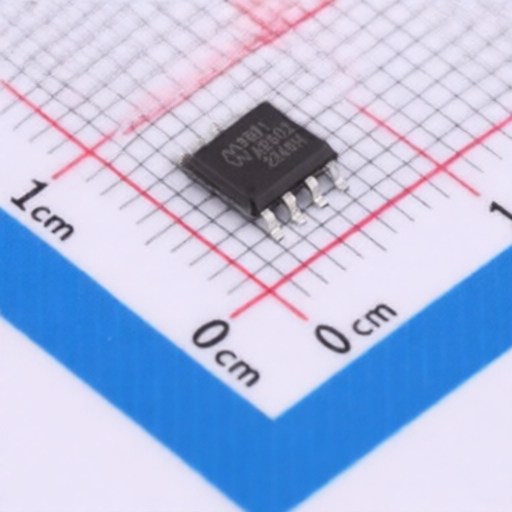

ZJW ZJA3601BSABT
Manufacturer:
ZJW
Asian Brands
Mfr. Part #:
ZJA3601BSABT
Package:
SOIC-8
Customer #:
Key Attributes:
Low-noise, RRO, precision instrumentation amplifier
Description:
25uV 5pA 2V/us 105dB 3.2MHz 1 Rail-to-Rail Output SOIC-8 Amplifiers RoHS
Datasheet:
ZJW ZJA3601BSABT
Products Specifications
Manufacturer:
Package:
SOIC-8
Settling time:
6.5us
Vos - Input Offset Voltage:
25uV
Input offset current drift(Ios TC):
1pA/℃
Ib - Input Bias Current:
5pA
Slew Rate:
2V/us
Common Mode Rejection Ratio(CMRR):
105dB
Quiescent Current(Iq):
3.3mA
Output Current:
90mA
Power Supply Rejection Ratio (PSRR):
130dB
Gain Bandwidth Product:
3.2MHz
Voltage - Supply:
-18V~-2.4V;2.4V~18V
Input Offset Voltage Drift(Vos TC):
300nV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Number of Channels:
1
Rail To Rail:
Rail-to-Rail Output
Input Offset Current(Ios):
2pA
Noise density(eN):
8nV/√Hz@1kHz
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 96 |
| Sales Unit | Piece |
