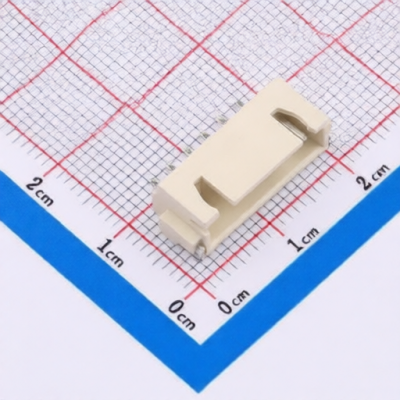

Zhongdi WAFER-XH2.54-6PWT-W1-P
Manufacturer:
Zhongdi
Asian Brands
Mfr. Part #:
WAFER-XH2.54-6PWT-W1-P
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 6POS 2.54mm
Description:
Connector Header 6 position 2.54mm Pitch 3A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
Zhongdi WAFER-XH2.54-6PWT-W1-P
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Pins Structure:
1x6P
Mounting Type:
Surface Mount, Right Angle
Pitch:
2.54mm
Contact Material:
Brass;LCP
Number of PINs:
6P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
6
Current Rating:
3A
Contact Plating:
Tin
Voltage Rating (Max):
250V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
