ZGWD XW0520012-290R-001

ZGWD XW0520012-290R-001

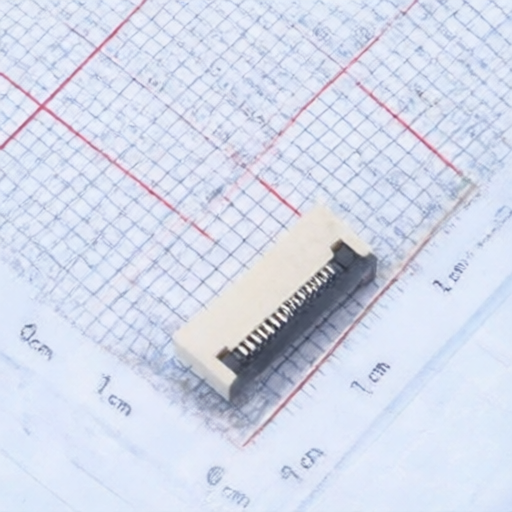

Name: ZGWD XW0520012-290R-001
Brand: ZGWD

Manufacturer: ZGWD Asian Brands

Mfr. Part #: XW0520012-290R-001

Package: SMD,P=0.5mm,Surface Mount,Right Angle

Customer #:

Key Attributes: CONN FFC FPC 29POS 0.5mm BOTTOM CNT SMD R/A

Description: FFC/FPC Connector 29 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle -25℃~+85℃

Datasheet: ZGWD XW0520012-290R-001

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

ZGWD

Package:

SMD,P=0.5mm,Surface Mount,Right Angle

Locking Feature:

Hinged Lid

Operating Temperature:

-25℃~+85℃

Number of Contacts:

29P

Pitch:

0.5mm

Voltage Rating (Max):

50V

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Contact Plating:

Tin

Contact Material:

Copper alloy

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2000
Sales Unit	Piece
