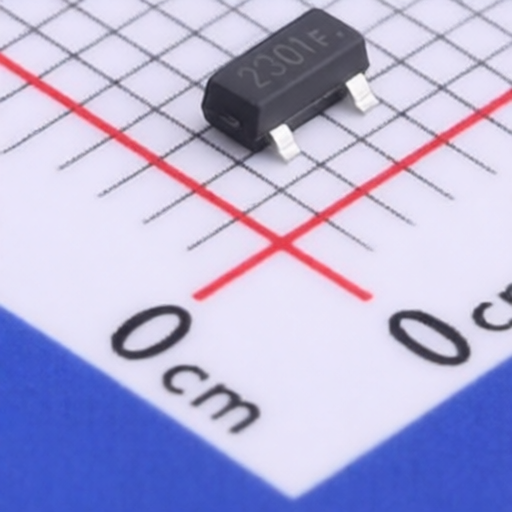

YANGJIE YJL2301F
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
YJL2301F
Package:
SOT-23(TO-236)
Customer #:
Key Attributes:
MOSFET P-CH 20V 2A SOT-23(TO-236)
Description:
P-Channel 20V 2A 700mW Surface Mount SOT-23(TO-236)
Datasheet:
YANGJIE YJL2301F
Products Specifications
Manufacturer:
Package:
SOT-23(TO-236)
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
90mΩ@4.5V,1.5A
Gate Threshold Voltage (Vgs(th)):
620mV
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
29pF@10V
Number:
1 P-Channel
Output Capacitance(Coss):
47pF
Input Capacitance(Ciss):
290pF
Pd - Power Dissipation:
700mW
Gate Charge(Qg):
3.9nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
