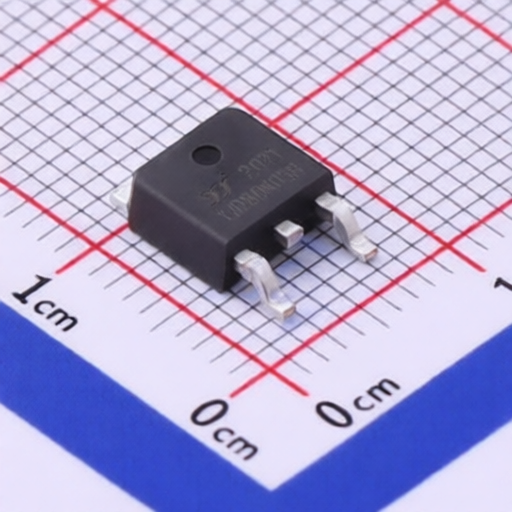

YANGJIE YJD80N03B

YANGJIE YJD80N03B

Name: YANGJIE YJD80N03B
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJD80N03B

Package: TO-252

Customer #:

Key Attributes: MOSFET N-CH 30V 80A TO-252

Description: N-Channel 30V 80A 45W Surface Mount TO-252

Datasheet: YANGJIE YJD80N03B

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

TO-252

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

80A

Operating Temperature -:

-55℃~+175℃

RDS(on):

4.2mΩ@10V,20A

Gate Threshold Voltage (Vgs(th)):

1.5V

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

252pF@15V

Number:

1 N-channel

Output Capacitance(Coss):

435pF

Input Capacitance(Ciss):

2.15nF@15V

Pd - Power Dissipation:

45W

Gate Charge(Qg):

52.8nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

YANGJIE

2348 Products

Asian Brand

Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
