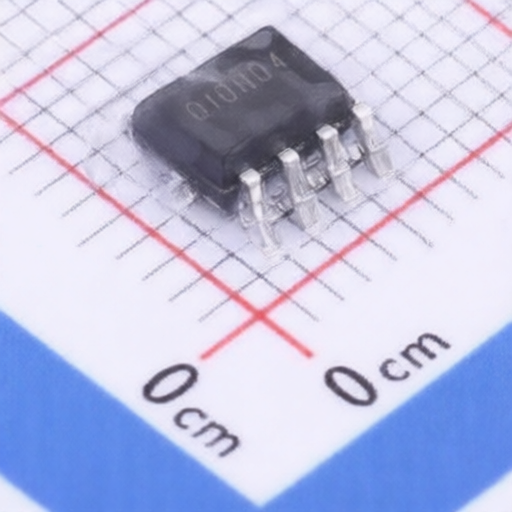

YANGJIE YJS10N04A

YANGJIE YJS10N04A

Name: YANGJIE YJS10N04A
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJS10N04A

Package: SOP-8

Customer #:

Key Attributes: MOSFET N-CH 40V 10A SOP-8

Description: N-Channel 40V 10A 1.2W Surface Mount SOP-8

Datasheet: YANGJIE YJS10N04A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOP-8

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

10A

Operating Temperature -:

-55℃~+150℃

RDS(on):

12.5mΩ@10V,8A

Gate Threshold Voltage (Vgs(th)):

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

108pF@20V

Number:

1 N-channel

Output Capacitance(Coss):

128pF

Input Capacitance(Ciss):

917pF@20V

Pd - Power Dissipation:

1.2W

Gate Charge(Qg):

23.6nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	4000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

YANGJIE

2348 Products

Asian Brand

Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
