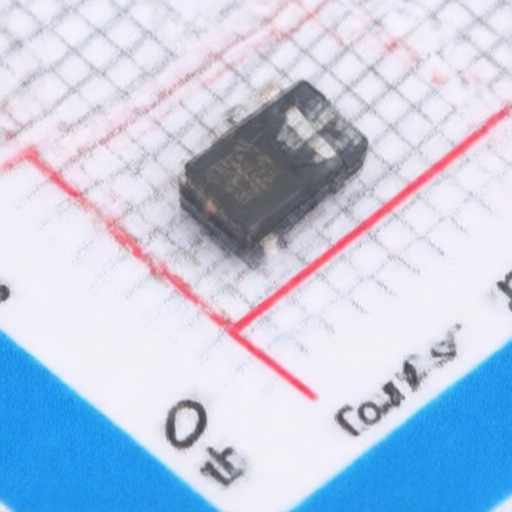

YANGJIE YJS07NP03B

YANGJIE YJS07NP03B

Name: YANGJIE YJS07NP03B
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJS07NP03B

Package: SOP-8-Dual

Customer #:

Key Attributes: MOSFET N/P-CH 30V 7A SOP-8-Dual

Description: 30V 7A 1.5V 1 N-Channel + 1 P-Channel 1.9W SOP-8-Dual Single FETs, MOSFETs RoHS

Datasheet: YANGJIE YJS07NP03B

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOP-8-Dual

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

RDS(on):

14mΩ@10V;15mΩ@10V

Gate Threshold Voltage (Vgs(th)):

1.5V

Type:

N-Channel + P-Channel

Reverse Transfer Capacitance (Crss@Vds):

60pF;160pF

Number:

1 N-Channel + 1 P-Channel

Output Capacitance(Coss):

75pF;170pF

Input Capacitance(Ciss):

380pF;1.22nF

Pd - Power Dissipation:

1.9W

Gate Charge(Qg):

12.5nC@10V;24nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	4000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

YANGJIE

2348 Products

Asian Brand

Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
