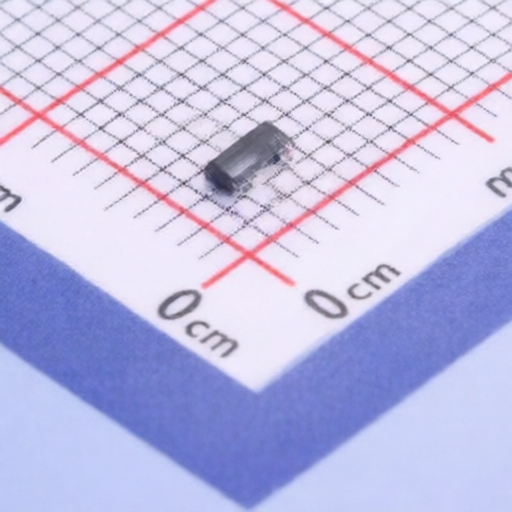

YANGJIE S9013-H

Name: YANGJIE S9013-H
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: S9013-H

Package: SOT-23

Customer #:

Key Attributes: TRANS NPN 25V 500mA SOT-23

Description: Bipolar (BJT) Transistor NPN 25V 500mA 150MHz 300mW Surface Mount SOT-23

Datasheet: YANGJIE S9013-H

Products Specifications

Category:

Discrete Semiconductors/Bipolar (BJT)/Single Bipolar Transistors

Manufacturer:

YANGJIE

Package:

SOT-23

Emitter-Base Voltage(Vebo):

Current - Collector Cutoff:

100nA

DC Current Gain:

120@50mA,1V

Transition frequency(fT):

150MHz

Vce Saturation(VCE(sat)):

600mV

type:

NPN

Pd - Power Dissipation:

300mW

Current - Collector(Ic):

500mA

Collector - Emitter Voltage VCEO:

25V

Operating Temperature:

-55℃~+150℃

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	3000
Sales Unit	Piece
