XYECONN XY-MX1.25-4A11-R

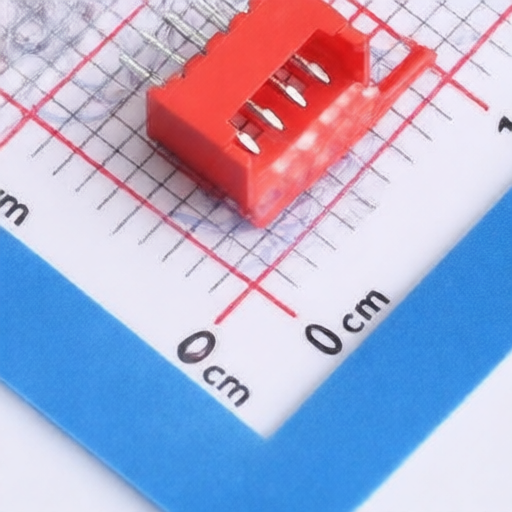

XYECONN XY-MX1.25-4A11-R

Name: XYECONN XY-MX1.25-4A11-R
Brand: XYECONN

Manufacturer: XYECONN Asian Brands

Mfr. Part #: XY-MX1.25-4A11-R

Package: Through Hole,P=1.25mm

Customer #:

Key Attributes: CONN HEADER TH 4POS 1.25mm

Description: Connector Header 4 position 1.25mm Pitch Through Hole -25℃~+85℃

Datasheet: XYECONN XY-MX1.25-4A11-R

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

XYECONN

Package:

Through Hole,P=1.25mm

Y-Width of Bottom Edge on Board:

3.2mm

Reference Series:

PicoBlade(MX 1.25)

Pins Structure:

1x4P

Contact Material:

Copper alloy;PA66

Color:

Red

Flame Retardant Rating:

UL94V-2

Number of Rows:

Mounting Type:

Through Hole

Supplementary Features:

Pitch:

1.25mm

Number of PINs:

Operating Temperature:

-25℃~+85℃

Number of PINs Per Row:

Current Rating:

Contact Plating:

Tin

X-Length of Bottom Edge on Board (Spacing Line):

6.8mm

Voltage Rating (Max):

125V

Row Spacing:

Z-Height of the Board:

4.7mm

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	2000
Sales Unit	Piece
