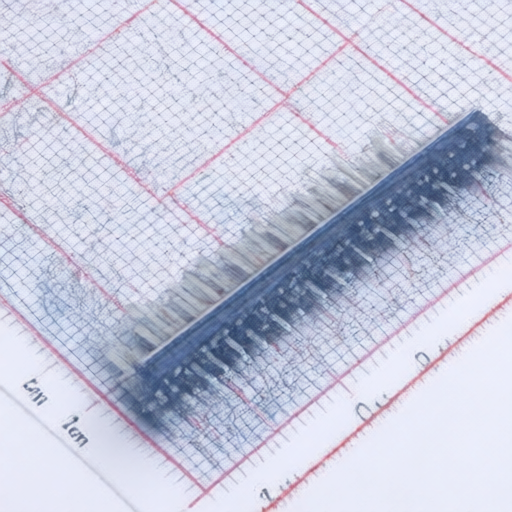

XYECONN PZ2.54-UP1S-12A
Manufacturer:
XYECONN
Asian Brands
Mfr. Part #:
PZ2.54-UP1S-12A
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 24POS 2.54mm DUAL ROW TH
Description:
2x12P Pin Header 2 2.54mm 2.5mm 6mm 24P -40℃~+105℃ 3mm 3A 2.54mm Through Hole,P=2.54mm Headers, Male Pins RoHS
Datasheet:
XYECONN PZ2.54-UP1S-12A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Pins Structure:
2x12P
Contact Material:
Brass
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Number of Rows:
2
Mounting Type:
Through Hole
Supplementary Features:
-
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
6mm
Number of PINs:
24P
Operating Temperature:
-40℃~+105℃
Length of End Connection Pin:
3mm
Contact Plating:
Gold
Current Rating:
3A
Voltage Rating (Max):
-
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
XYECONN
2578 Products
XYECONN is a technology enterprise focused on the research, development, production, and promotion of new technologies. It possesses advanced manufacturing equipment and precise testing instruments. The company primarily produces connectors, including board-to-board connectors, wire-to-wire connectors, and wire harness processing, and also engages in the design and manufacturing of connector molds.
