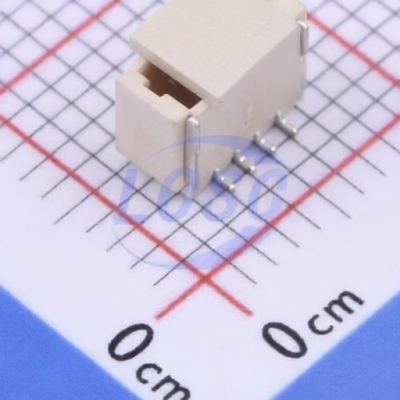

XUNPU WAFER-SH1.0-4PLB
Manufacturer:
XUNPU
Asian Brands
Mfr. Part #:
WAFER-SH1.0-4PLB
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 1mm
Description:
Connector Header 4 position 1mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.05mm
Reference Series:
SH
Pins Structure:
1x4P
Contact Material:
Brass;LCP
Color:
Beige
Flame Retardant Rating:
-
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount,Vertical
Pitch:
1mm
Number of PINs:
4P
Operating Temperature:
-40℃~+85℃
Number of PINs Per Row:
4
Contact Plating:
Tin
Current Rating:
1A
X-Length of Bottom Edge on Board (Spacing Line):
6.35mm
Voltage Rating (Max):
50V
Row Spacing:
-
Z-Height of the Board:
4.4mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
