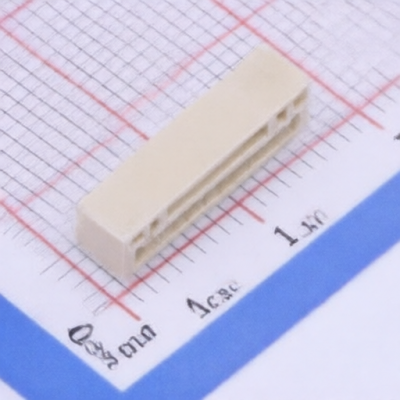

XUNPU WAFER-GH1.25-10PWB
Manufacturer:
XUNPU
Asian Brands
Mfr. Part #:
WAFER-GH1.25-10PWB
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 10POS 1.25mm
Description:
Connector Header 10 position 1.25mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5mm
Pins Structure:
1x10P
Reference Series:
GH
Contact Material:
Brass;LCP
Color:
Beige
Flame Retardant Rating:
-
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount, Right Angle
Pitch:
1.25mm
Number of PINs:
10P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
10
Contact Plating:
Tin
Current Rating:
1A
X-Length of Bottom Edge on Board (Spacing Line):
15.75mm
Voltage Rating (Max):
125V
Row Spacing:
-
Z-Height of the Board:
4.35mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
