XNRUSEMI XR40G04F
Manufacturer:
XNRUSEMI
Asian Brands
Mfr. Part #:
XR40G04F
Package:

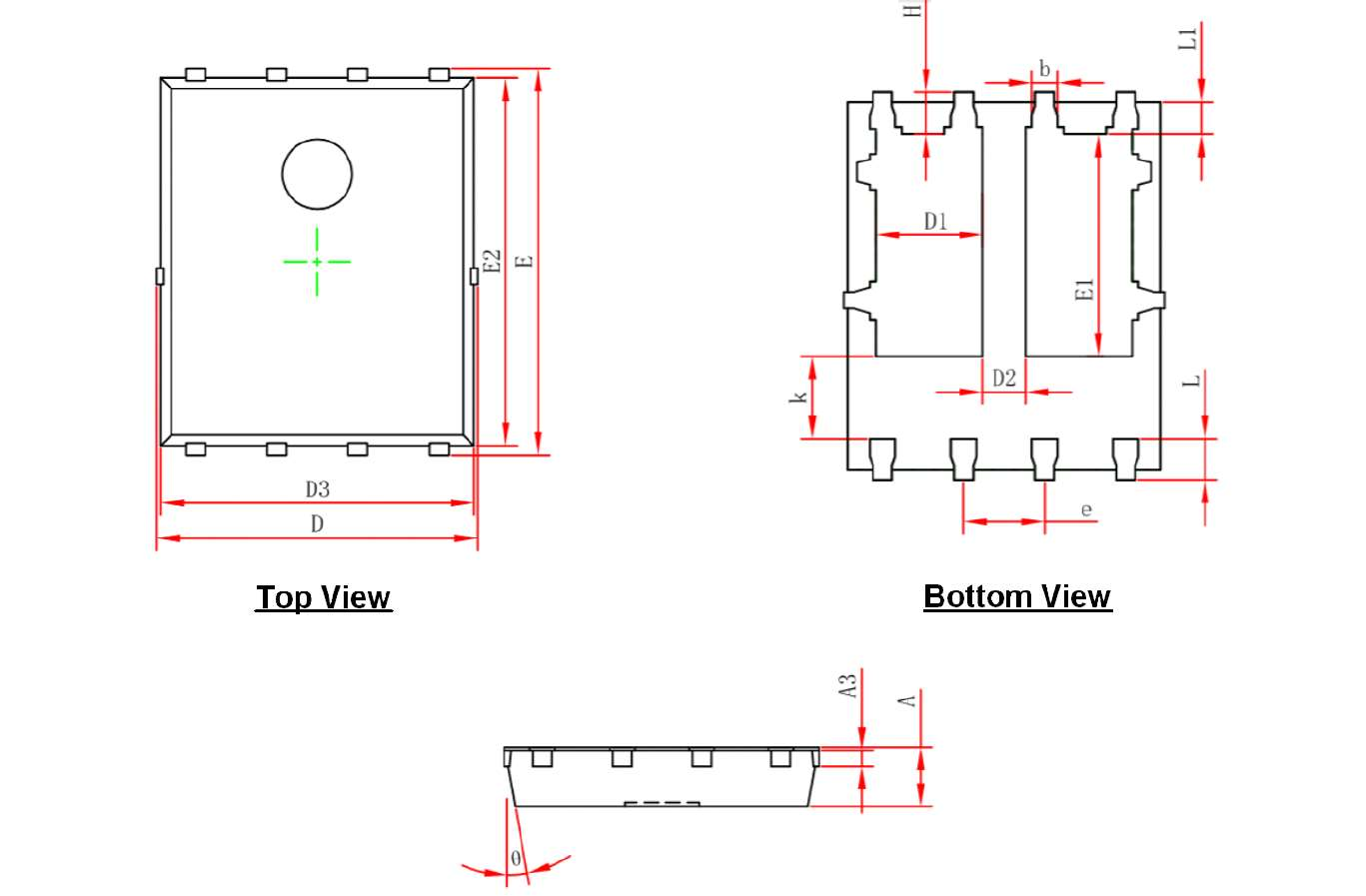

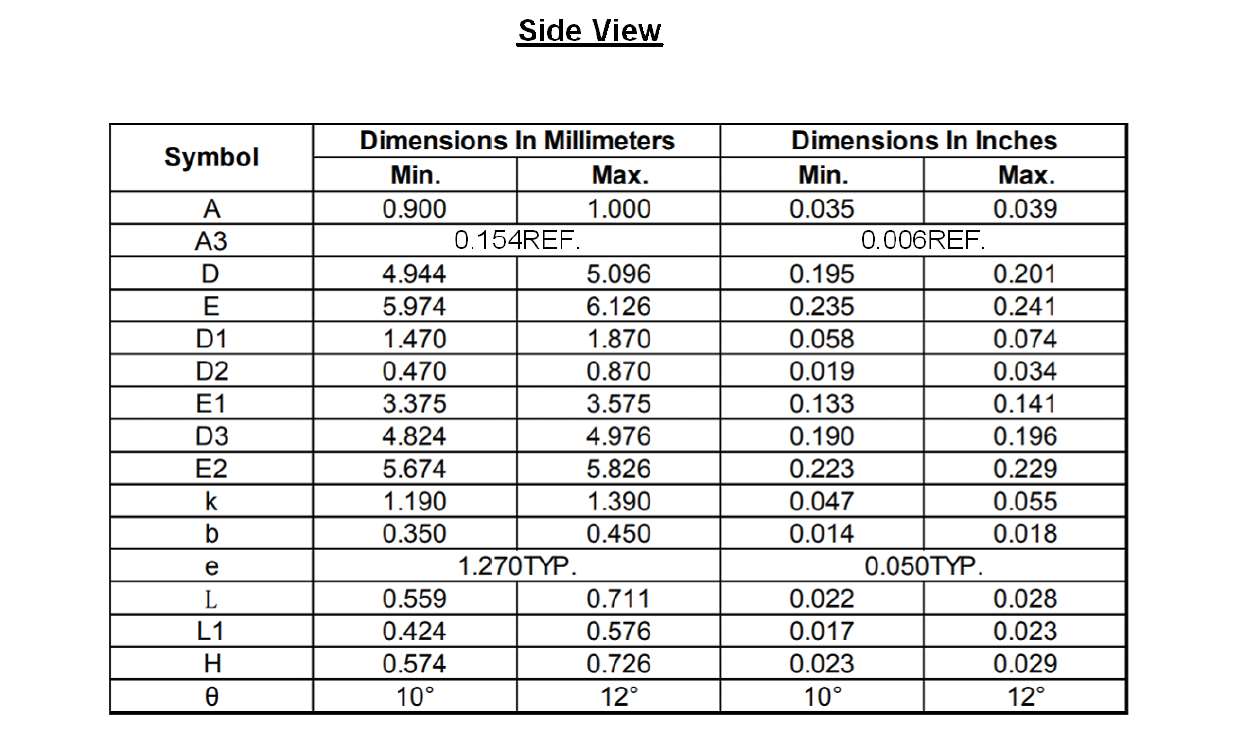

PDFN-8L(5x6)
Customer #:
Key Attributes:
MOSFET N/P-CH 40V 40A PDFN-8L(5x6)
Description:
40V 40A PDFN-8L(5x6) Single FETs, MOSFETs RoHS
Datasheet:
XNRUSEMI XR40G04F
Products Specifications
Manufacturer:
Package:
PDFN-8L(5x6)
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
40A
RDS(on):
11.5mΩ@10V;17.5mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.5V;2.5V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
96pF;135pF
Input Capacitance(Ciss):
964pF;1.75nF
Pd - Power Dissipation:
20W;38W
Output Capacitance(Coss):
109pF;147pF
Gate Charge(Qg):
22.9nC@10V;30nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
