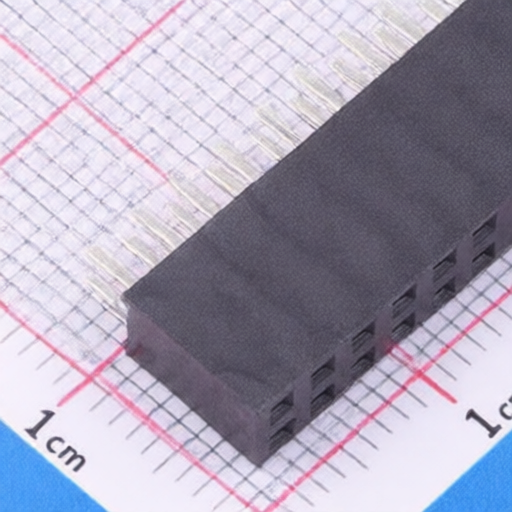

XFCN PM254V-12-20-H85
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
PM254V-12-20-H85
Package:
Through Hole,P=2.54mm
Customer #:
Description:
Through Hole -40℃~+105℃ 3A 20P 8.5mm Brass 2x10P Top 2.54mm 2 Square Hole Through Hole,P=2.54mm Headers, Receptacles, Female Sockets RoHS
Datasheet:
XFCN PM254V-12-20-H85
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Mounting Type:
Through Hole
Operating Temperature:
-40℃~+105℃
Current Rating:
3A
Number of Pins:
20P
Insulation Height:
8.5mm
PIN Length:
3.2mm
Contact Material:
Brass
Holes Structure:
2x10P
Holes Direction:
Top
Pitch:
2.54mm
Number of Rows:
2
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 160 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
XFCN
1745 Products
XFCN Connectors Co., Ltd.
(hereinafter referred to as "XFCN") was founded in 2003 and is dedicated to the design, development, production, and sales of various electronic connectors and wiring harnesses. Through years of reform, innovation, and R&D, many of its products have received certifications from UL, CSA, TUV, and have also obtained invention patents. XFCN boasts a comprehensive design and development management system, along with precision mold manufacturing, high-speed continuous stamping, plastic molding, and automation equipment. It has also introduced high-precision experimental equipment and measuring instruments. Committed to technological innovation, it continuously launches high-tech and high-quality products that meet environmental protection standards such as RoHS, REACH, and halogen-free. XFCN's adherence to the ISO quality assurance system has positioned us as an excellent manufacturer of connectors.
