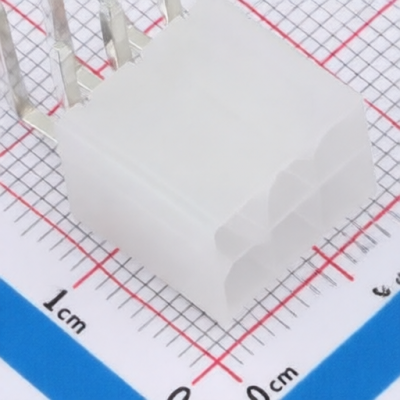

XFCN M4202R-2X03P
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M4202R-2X03P
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
4.20mm PITCH DIP 90° DUAL ROW WAFER
Description:
2x3P 2 4.2mm -40℃~+105℃ 6P 3 9A 600V Through Hole,Right Angle,P=4.2mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
18.35mm
Pins Structure:
2x3P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-2
Number of Rows:
2
Mounting Type:
Right Angle
Pitch:
4.2mm
Operating Temperature:
-40℃~+105℃
Number of PINs:
6P
Number of PINs Per Row:
3
Contact Plating:
Tin
Current Rating:
9A
Voltage Rating (Max):
600V
Z-Height of the Board:
9.7mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 290 |
| Sales Unit | Piece |
