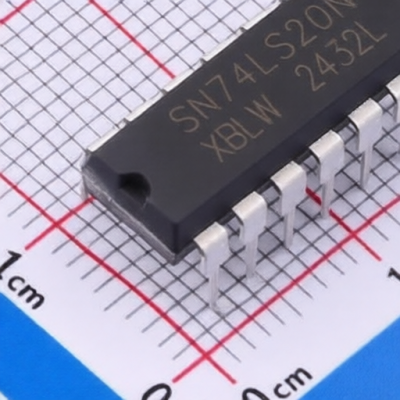

XBLW SN74LS20N(XBLW)
Manufacturer:
XBLW
Asian Brands
Mfr. Part #:
SN74LS20N(XBLW)
Package:
DIP-14
Customer #:
Key Attributes:
Dual 4-input Nand Gate
Description:
2uA 2V~6V DIP-14 Gates and Inverters RoHS
Products Specifications
Manufacturer:
Package:
DIP-14
Series:
74LS
Input Logic Level - Low:
500mV;1.35V;1.8V
Input Logic Level - High:
1.5V;3.15V;4.2V
Operating Temperature:
-20℃~+85℃
Output Logic Level - Low:
260mV
Output Logic Level - High:
1.9V;4.4V;5.9V
Quiescent Current(Iq):
2uA
Propagation Delay:
18ns@4.5V;15ns@6V
Voltage - Supply:
2V~6V
Number of Channels:
2;4
Current - Output High(IOH):
5.2mA
Current - Output Low(IOL):
5.2mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
