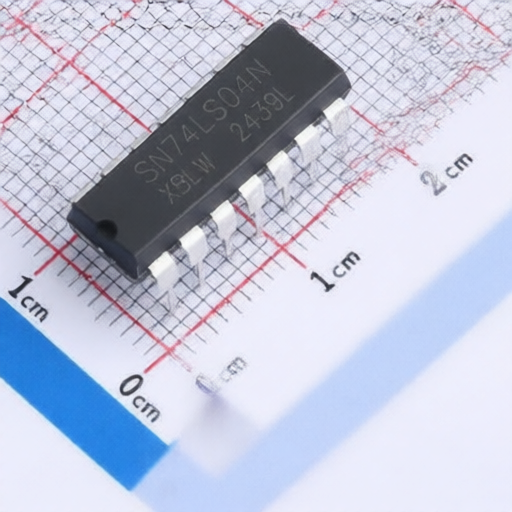

XBLW SN74LS04N(XBLW)
Manufacturer:
XBLW
Asian Brands
Mfr. Part #:
SN74LS04N(XBLW)
Package:
DIP-14
Customer #:
Key Attributes:
Hex Inverter
Description:
14ns@6.0V,50pF 2V~6V 2uA 6 DIP-14 Gates and Inverters RoHS
Datasheet:
XBLW SN74LS04N(XBLW)
Products Specifications
Manufacturer:
Package:
DIP-14
Input Type:
-
Propagation Delay:
14ns@6.0V,50pF
Voltage - Supply:
2V~6V
Input Logic Level - High:
1.5V;3.15V;4.2V
Series:
74LS
Input Logic Level - Low:
500mV;1.35V;1.8V
Operating Temperature:
-20℃~+85℃
Output Logic Level - Low:
260mV;330mV
Output Logic Level - High:
1.9V;4.4V;5.9V
Quiescent Current(Iq):
2uA
Number of Circuits:
6
Number of Channels:
-
Current - Output High(IOH):
5.2mA
Current - Output Low(IOL):
5.2mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
XBLW
651 Products
Shenzhen Xinbole Electronics Co., Ltd.
(hereafter referred to as "XBLW") specializes in the research, development, and sales of semiconductor devices. The founder and core team possess nearly 20 years of experience in the semiconductor industry, particularly in high-performance analog and hybrid integrated circuit design. They have a deep understanding of customer application requirements, allowing them to provide optimal chip solutions and create significant value for their clients. Their main products include power management ICs, low-power LDOs, MOSFETs, drivers, interface circuits, and logic circuits. These products are widely utilized in power supplies, instruments, home appliances, communications, lighting, automotive electronics, and industrial automation. The company’s products have successfully passed ISO9001/ISO14001 management system certifications and SGS certification. They comply with EU RoHS and REACH environmental protection standards and can provide halogen-free produc
