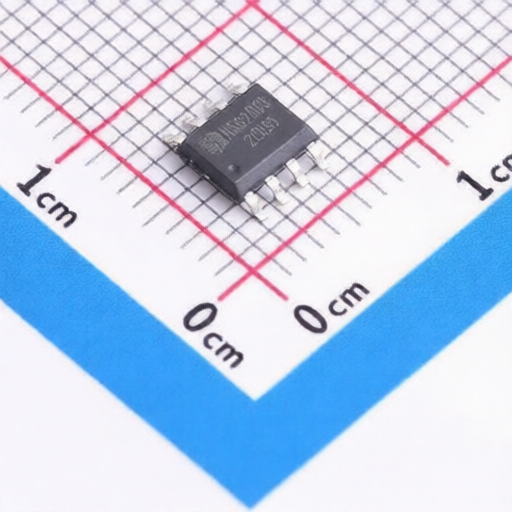

WXNSIC NSG2003
Manufacturer:
WXNSIC
Asian Brands
Mfr. Part #:
NSG2003
Package:
SOP-8
Customer #:
Key Attributes:
Single-phase high-side and low-side power MOSFET/IGBT driver IC with integrated bootstrap
Description:
Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
Datasheet:
WXNSIC NSG2003
Products Specifications
Manufacturer:
Package:
SOP-8
Peak Output Current(Sink):
600mA
Rise Time:
70ns
Current - Output High(IOH):
290mA
Fall Time:
30ns
Quiescent Current(Iq):
120uA
Load Type:
MOSFET;IGBT
Voltage - Supply:
10V~20V
Driven Configuration:
High Side;Low Side
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
WXNSIC
154 Products
WXNSIC, established on November 17, 2020, focuses on the research and development as well as sales of automotive-grade analog IC chips. The main product lines include gate driver IC chips, isolated gate driver IC chips, motor driver IC chips, smart power switches, and intelligent modules.
