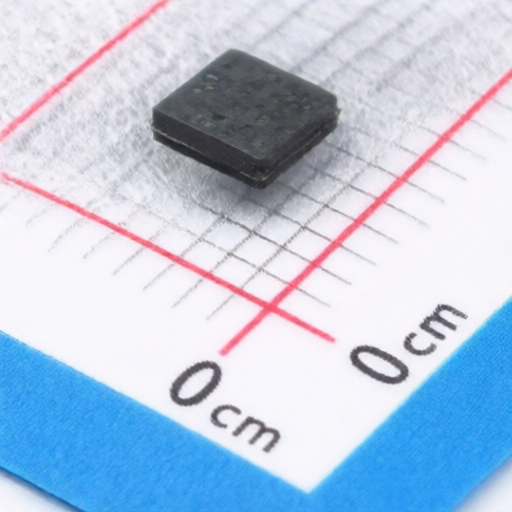

WXNSIC NSH505PQ
Manufacturer:
WXNSIC
Asian Brands
Mfr. Part #:
NSH505PQ
Package:
PQFN-26(5x6)
Customer #:
Key Attributes:
5A, 500V Half-Bridge IPM
Description:
20kHz PQFN-26(5x6) Power Driver Modules RoHS
Datasheet:
WXNSIC NSH505PQ
Products Specifications
Manufacturer:
Package:
PQFN-26(5x6)
Voltage - Supply:
13.5V~16.5V
Quiescent Current(Iq):
360uA
High-side Bias Voltage(Vbs):
13.5V~16.5V
Configuration:
Half Bridge
Operating temperature:
-40℃~+150℃
Voltage - Isolation:
1500Vrms
Frequency - Switching:
20kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 6000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
WXNSIC
154 Products
WXNSIC, established on November 17, 2020, focuses on the research and development as well as sales of automotive-grade analog IC chips. The main product lines include gate driver IC chips, isolated gate driver IC chips, motor driver IC chips, smart power switches, and intelligent modules.
