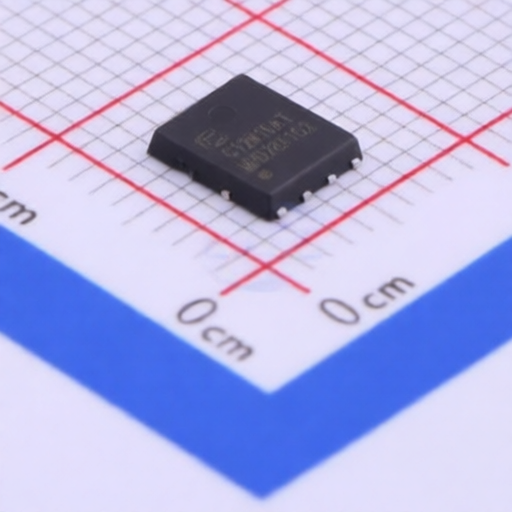

WUXI UNIGROUP MICRO TSG12N10AT
Manufacturer:
WUXI UNIGROUP MICRO
Asian Brands
Mfr. Part #:
TSG12N10AT
Package:
DFN-8-EP(5.8x5.3)
Customer #:
Description:
100V 55A 15.5mΩ@4.5V 2.5V@250uA 1 N-channel 56.5W DFN-8-EP(5.8x5.3) Single FETs, MOSFETs RoHS
Datasheet:
WUXI UNIGROUP MICRO TSG12N10AT
Products Specifications
Manufacturer:
Package:
DFN-8-EP(5.8x5.3)
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
55A
Operating Temperature -:
-55℃~+150℃
RDS(on):
15.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
12pF@50V
Number:
1 N-channel
Input Capacitance(Ciss):
2.455nF
Pd - Power Dissipation:
56.5W
Gate Charge(Qg):
45nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
