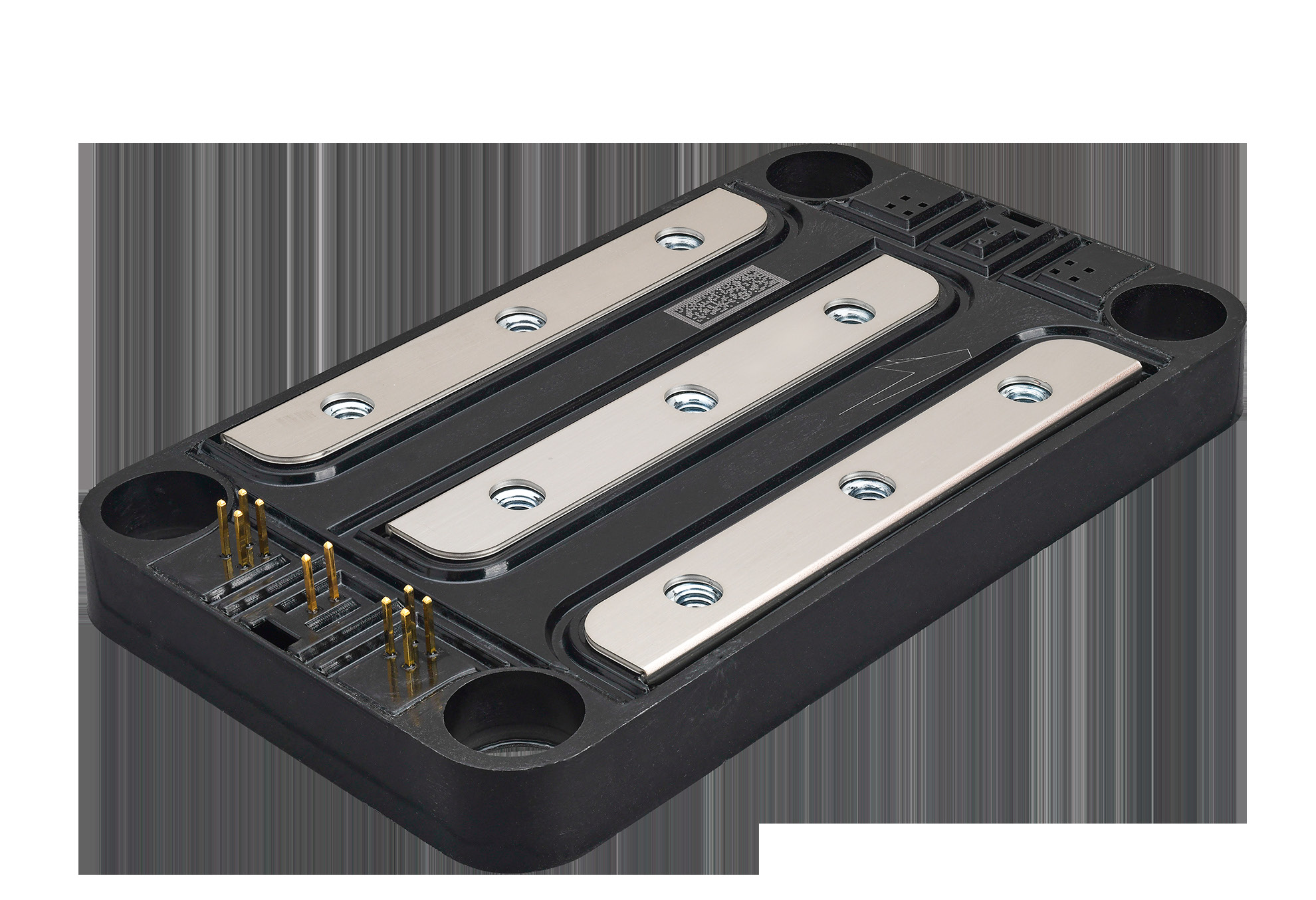

Wolfspeed CAS480M12HM3
Manufacturer:
Wolfspeed
Mfr. Part #:
CAS480M12HM3
Package:
Module
Customer #:
Description:
1.2kV 640A 2.97mΩ@15V 3.6V@160mA 1.5kW Module Single FETs, MOSFETs RoHS
Datasheet:
Wolfspeed CAS480M12HM3
Products Specifications
Manufacturer:
Package:
Module
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
640A
RDS(on):
2.97mΩ@15V
Operating Temperature -:
-40℃~+175℃
Gate Threshold Voltage (Vgs(th)):
3.6V@160mA
Output Capacitance(Coss):
43.1nF
Pd - Power Dissipation:
1.5kW
Gate Charge(Qg):
1.59uC@15V
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Wolfspeed
738 Products
Wolfspeed was founded in 1987 as the power and RF division of Cree and officially rebranded to Wolfspeed in 2021. The company focuses on silicon carbide (SiC) and gallium nitride (GaN) technologies, primarily producing wide bandgap semiconductor materials, power devices, and RF devices.
