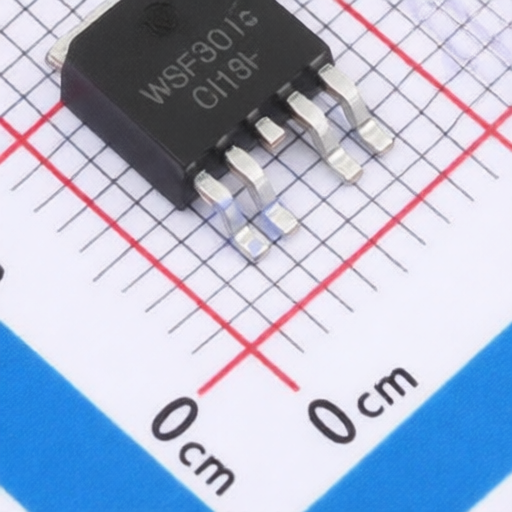

Winsok Semicon WSF3015
Manufacturer:
Winsok Semicon
Asian Brands
Mfr. Part #:
WSF3015
Package:
TO-252-4L
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 30V 22A TO-252-4L
Description:
N-Channel+P-Channel Array 30V 22A 18W Surface Mount TO-252-4L
Datasheet:
Winsok Semicon WSF3015
Products Specifications
Manufacturer:
Package:
TO-252-4L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
22A
Operating Temperature -:
-55℃~+150℃
RDS(on):
22mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.8V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
115pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
930pF
Input Capacitance(Ciss):
930pF@15V
Pd - Power Dissipation:
18W
Gate Charge(Qg):
9.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Winsok Semicon
481 Products
Winsok Semiconductor focuses on semiconductor packaging and testing, who is dedicated to electronic components development and research for many years. Winsok was established in 2000, which became a minority that can provide "chip testing, packaging design, packaging test, special order products" in Eastern Asia. Now it has world-class technology center as well as postdoctoral research station. What’s more, it is one of the Taiwan key high-tech enterprises, clean environmental protection company, high density integrated circuits that the national engineering laboratory based on and the global alliance for semiconductor (GSA) members. Innovative products and solutions are widely used in automotive electronics, power management, industrial equipment, lighting, portable products and 3C products. Winsok cherishes the conviction that "customer is our God, teamwork, honesty and trustworthiness”, offers customers the competitive products with leading technology, provides high quality service,
