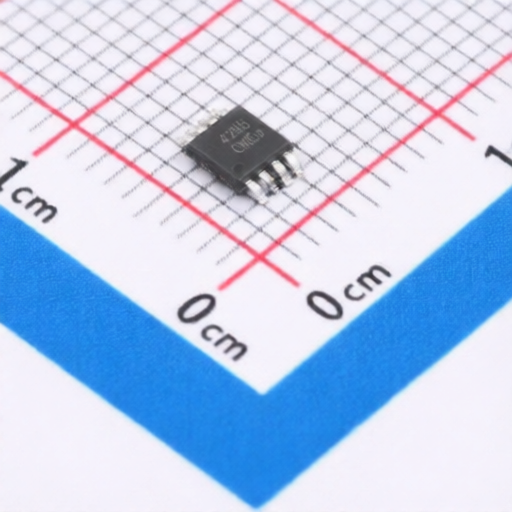

WILLSEMI WS74285M-8/TR
Manufacturer:
WILLSEMI
Asian Brands
Mfr. Part #:
WS74285M-8/TR
Package:
MSOP-8
Customer #:
Key Attributes:
Dual-Channel High-Precision High-Voltage Current-Sense Amplifier
Description:
10uV 2.7V~76V 45uA 150dB 2.7V~5.5V 400kHz 20V/V 2 MSOP-8 Amplifiers RoHS
Datasheet:
WILLSEMI WS74285M-8/TR
Products Specifications
Manufacturer:
Package:
MSOP-8
Vos - Input Offset Voltage:
10uV
Vcm - Common Mode Voltage:
2.7V~76V
Ib - Input Bias Current:
45uA
Quiescent Current(Iq):
200uA
Common Mode Rejection Ratio(CMRR):
150dB
Voltage - Supply:
2.7V~5.5V
Gain Bandwidth Product:
400kHz
Gain:
20V/V
Input Offset Voltage Drift(Vos TC):
100nV/℃
Maximum Power Supply Range (Vdd-Vss):
6V
Differential Voltage:
-10V~+10V
Number of Channels:
2
Input Offset Current(Ios):
100nA
Noise density(eN):
20nV/√Hz@1kHz
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
