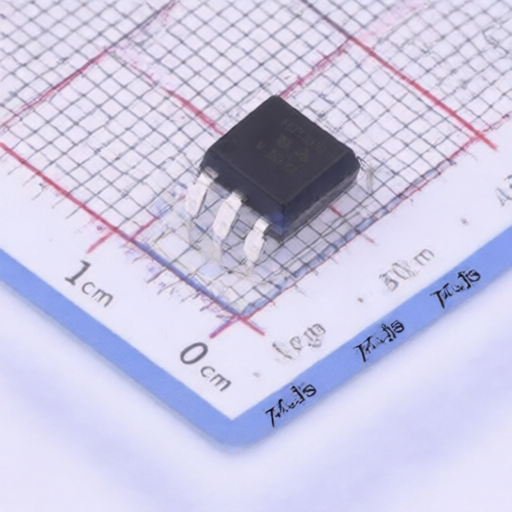

VISHAY TCDT1102G

VISHAY TCDT1102G

Name: VISHAY TCDT1102G
Brand: VISHAY

Manufacturer: VISHAY

Mfr. Part #: TCDT1102G

Package: DIP-6

Customer #:

Key Attributes: Optocoupler, Phototransistor Output

Description: 50mA 300mV@10mA,1mA 32V 5V 1.25V DC DIP-6 Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: VISHAY TCDT1102G

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

VISHAY

Package:

DIP-6

Output Current:

50mA

Fall time:

6.7us

Rise time:

7us

Vce Saturation(VCE(sat)):

300mV@10mA,1mA

Operating Temperature:

-55℃~+110℃

Load Voltage:

32V

Reverse Voltage:

Current transfer ratio:

125%;63%

Voltage - Forward(Vf):

1.25V

Forward Current(If):

60mA

Number of Channels:

Load Type:

Phototransistor

Input type:

Isolation Voltage(Vrms):

5kV

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece
