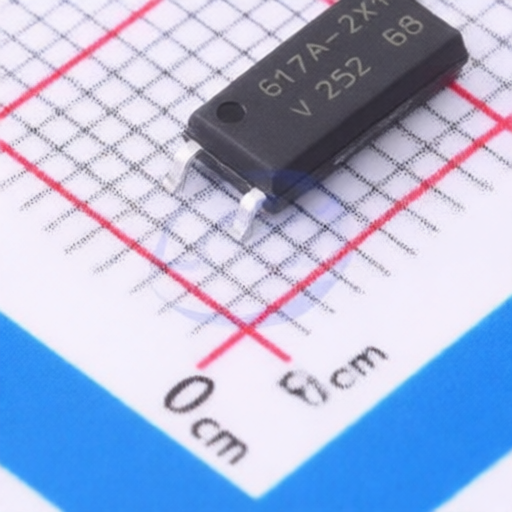

VISHAY VOL617A-2X001T
Manufacturer:
VISHAY
Mfr. Part #:
VOL617A-2X001T
Package:
SOP-4
Customer #:
Key Attributes:
Optocoupler, Phototransistor Output, 4 Pin LSOP, Long Creepage Mini-Flat Package
Description:
50mA 250mV@1mA,5mA 80V 6V 1.16V DC SOP-4 Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
VISHAY VOL617A-2X001T
Products Specifications
Manufacturer:
Package:
SOP-4
Fall time:
5us
Rise time:
3.5us
Output Current:
50mA
Vce Saturation(VCE(sat)):
250mV@1mA,5mA
Operating Temperature:
-55℃~+110℃
Load Voltage:
80V
Reverse Voltage:
6V
Current transfer ratio:
125%;63%
Voltage - Forward(Vf):
1.16V
Forward Current(If):
60mA
Pd - Power Dissipation:
250mW
Number of Channels:
1
Load Type:
Phototransistor
Input type:
DC
Isolation Voltage(Vrms):
5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VISHAY
12606 Products
Vishay Intertechnology, Inc. is one of the world's largest manufacturers of discrete semiconductors (diodes, MOSFETs and infrared optoelectronics) and passive electronic components (resistors, inductors and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, power supplies, and medical markets. Vishay's product innovations, successful acquisition strategy and "one-stop shop" service have made it a global industry leader.
