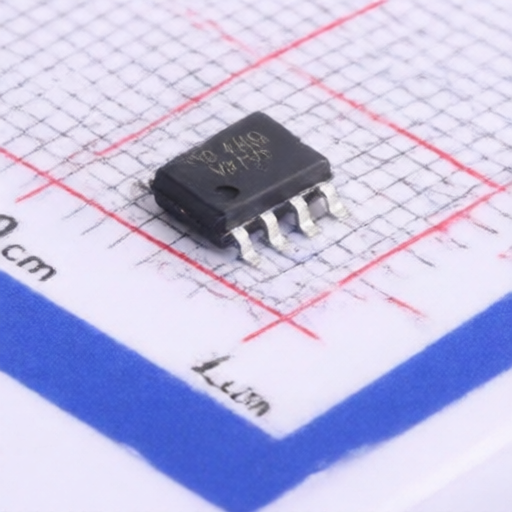

VBsemi Elec AO4419-VB
Manufacturer:
VBsemi Elec
Mfr. Part #:
AO4419-VB
Package:
SO-8
Customer #:
Description:
P-Channel 30V 9A 2.5W Surface Mount SO-8
Datasheet:
VBsemi Elec AO4419-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
18mΩ@10V;24mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
2.5V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
145pF
Number:
1 P-Channel
Output Capacitance(Coss):
180pF
Input Capacitance(Ciss):
1.455nF
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
13nC@10V
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
