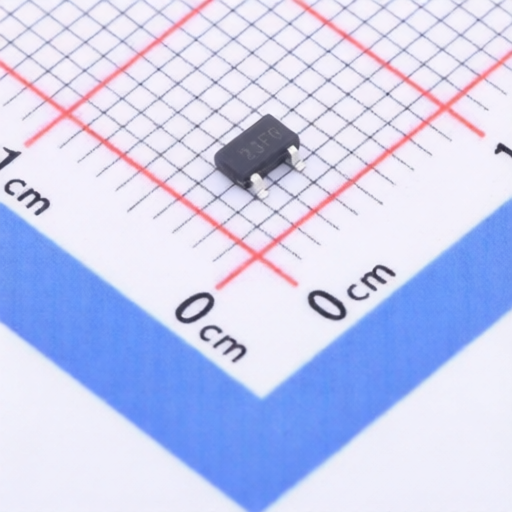

UTC UT2306G-AE3-R
Manufacturer:
UTC
Asian Brands
Mfr. Part #:
UT2306G-AE3-R
Package:
SOT-23
Customer #:
Key Attributes:
N-Channel, Current:3.5A, Voltage:30V
Description:
30V 3.5A 90mΩ@4.5V 2V@250uA 600mW SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
UTC UT2306G-AE3-R
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
3.5A
Operating Temperature -:
-
RDS(on):
90mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
2V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
35pF
Output Capacitance(Coss):
43pF
Input Capacitance(Ciss):
145pF
Pd - Power Dissipation:
600mW
Gate Charge(Qg):
9.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
UTC
961 Products
Unisonic Technologies Company Limited was set up in 1990, and it is the manufacturing supplier for high-tech semiconductor devices and IC design, and its products are mainly of Power Management, and Audio Power Amplifier IC, supplemented with Motor Controller, OP, and TR. These components are primarily used in the market of PC, telecom, and consumer products, and they are sold throughout Asian area, while the company also owns direct branch in South Korea, Thailand, and India.
Unisonic has employed IDM vertical resource integration strategy, and has clearly positioned itself as a highly integrated part manufacturer.
