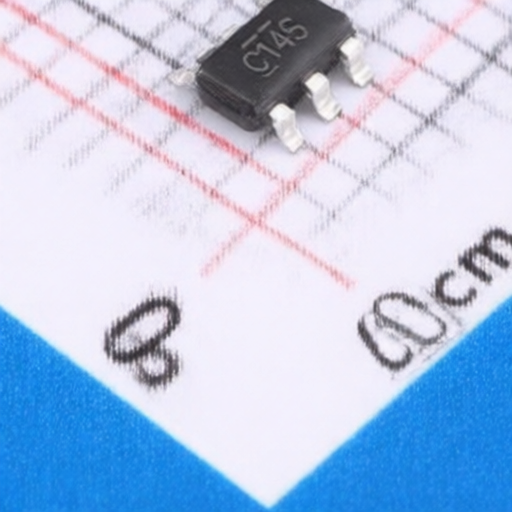

UMW SN74LVC2G14DBVR(UMW)

UMW SN74LVC2G14DBVR(UMW)

Name: UMW SN74LVC2G14DBVR(UMW)
Brand: UMW

Manufacturer: UMW Asian Brands

Mfr. Part #: SN74LVC2G14DBVR(UMW)

Package: SOT-23-6

Customer #:

Key Attributes: Dual Inverter with Schmitt-Trigger Inputs

Description: Schmitt trigger 2.9ns@3.3V,50pF 1.65V~5.5V 10uA 2 SOT-23-6 Gates and Inverters RoHS

Datasheet: UMW SN74LVC2G14DBVR(UMW)

Products Specifications

Category:

Integrated Circuits (ICs)/Logic/Gates and Inverters

Manufacturer:

UMW

Package:

SOT-23-6

Input Type:

Schmitt trigger

Propagation Delay:

2.9ns@3.3V,50pF

Voltage - Supply:

1.65V~5.5V

Operating Temperature:

-55℃~+125℃

Series:

74LVC

Input Logic Level - Low:

Input Logic Level - High:

Output Logic Level - Low:

100mV;240mV;300mV;400mV;550mV

Output Logic Level - High:

1.29V;1.9V;2.2V;2.4V;2.3V;3.8V

Quiescent Current(Iq):

10uA

Number of Circuits:

Current - Output High(IOH):

24mA

Number of Channels:

Current - Output Low(IOL):

24mA

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	3000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

UMW

1816 Products

Authorised Brand Asian Brand

Guangdong Youtai Semiconductor Co., Ltd. (hereafter referred to as "UMW") was established in 2013. It is a high-tech enterprise that integrates R&D, design, packaging, and manufacturing of integrated circuits and discrete devices. UMW has passed the ISO9001:2015 quality management system certification, and its products have received UL, CQC, and SGS certifications. UMW is known for its commitment to high-end quality and has earned a strong reputation in markets. Its product lines include power management ICs, low-power LDOs, three-terminal voltage regulators, MOSFETs, optocouplers, rectifier bridges, and logic circuits. These products are widely used in power supplies, instruments, home appliances, communication equipment, automotive electronics, and industrial automation. The company is dedicated to the sustainable development of the semiconductor industry, leveraging its expertise in high technology to provide top-quality products and system solutions. UMW aims to contribute to a har
