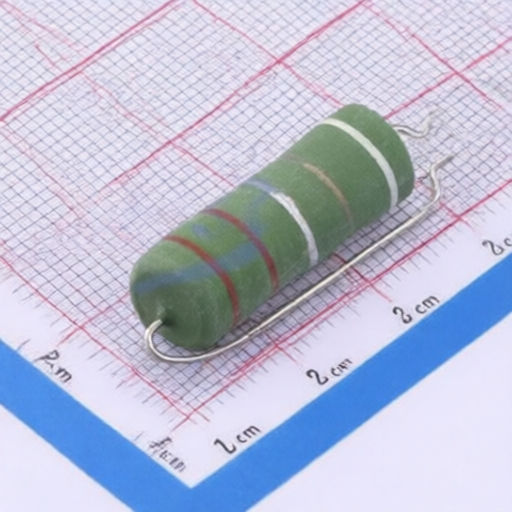

TyoHM NKNP6W0R22JF4B1
Manufacturer:
TyoHM
Asian Brands
Mfr. Part #:
NKNP6W0R22JF4B1
Package:
Through Hole,D8.5xL24mm
Customer #:
Key Attributes:
RES 220mΩ ±5% Through Hole,D8.5xL24mm
Description:
Wirewound Resistor 220mΩ 6W ±300ppm/℃ ±5% Through Hole,D8.5xL24mm Through Hole Resistors RoHS
Datasheet:
TyoHM NKNP6W0R22JF4B1
Products Specifications
Manufacturer:
Package:
Through Hole,D8.5xL24mm
Type:
Wirewound Resistor
Resistance:
220mΩ
Power(Watts):
6W
Temperature Coefficient:
±300ppm/℃
Tolerance:
±5%
Operating Temperature:
-55℃~+200℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TyoHM
503 Products
TY-OHM Electronic Works Co., Ltd.
(hereinafter referred to as "TY-OHM" or "TYoHM") was established in 1958 as a pioneering resistor manufacturer in Taiwan. It was the first company to produce carbon film and low-end wire wound resistors. In 1970, TY-OHM entered a partnership with JRM to manufacture metal oxide film and high-end wire wound resistors. In 1975, the company collaborated with Kidco to gain the know-how to produce precision metal film resistors with a 1% tolerance. In 1985, TY-OHM developed a resistor network and fusible resistors. In 1992, the company began marketing SMD components, including chip resistors and chip resistor networks, worldwide. From its inception, TY-OHM has prioritized quality systems. The company received "Class A" quality approval from the local government, obtained ISO9002 certification, and was awarded the Philips Lighting Oss award for excellence in quality, delivery, and support. TY-OHM's products are widely used in mobile phones, lighting, power su
