TWBOR CV6R8MPA13B

TWBOR CV6R8MPA13B

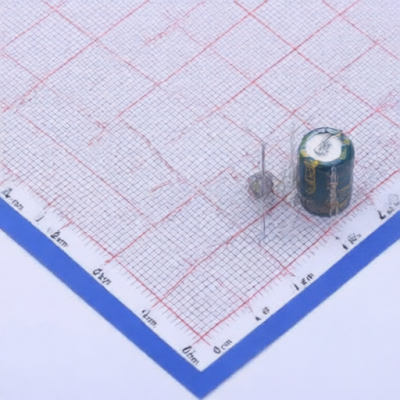

Name: TWBOR CV6R8MPA13B
Brand: TWBOR

Manufacturer: TWBOR Asian Brands

Mfr. Part #: CV6R8MPA13B

Package: Through Hole,D10xL13mm

Customer #:

Key Attributes: CAP ALUM 6.8uF ±20% 450V TH

Description: 6.8uF 450V Aluminum Electrolytic Capacitors Through Hole,D10xL13mm 5000hrs@105℃

Datasheet: TWBOR CV6R8MPA13B

Products Specifications

Category:

Passives/Capacitors/Aluminum Electrolytic Capacitors

Manufacturer:

TWBOR

Package:

Through Hole,D10xL13mm

Operating Temperature:

-25℃~+105℃

Lifetime:

5000hrs@105℃

Capacitance:

6.8uF

Height - Seated (Max):

13mm

Pin Spacing:

5mm

Voltage Rating:

450V

Diameter:

10mm

Equivalent Series Resistance(ESR):

12Ω@100kHz

Tolerance:

±20%

Ripple Current:

120mA@100kHz

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	250
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8532229000
USHTS	8532230020
TARIC	8532220000
CAHTS	8532220000
BRHTS	85322200
INHTS	85322200
MXHTS	8532.22.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

TWBOR

459 Products

Asian Brand

Bor Hurng Electronic Co.,Ltd.,which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors.In year 1988,Bor Hurng became one of the first Taiwan enterprises in the circle that invested in Chinamainland and established its factory in Zhaoqing, Guangdong Province.Land occupation of the factory is 10,000㎡,with the annual capacity of 1.2 billion pieces.And the trunover management system.All products are qualified with RoHS standard approved by SGS.
