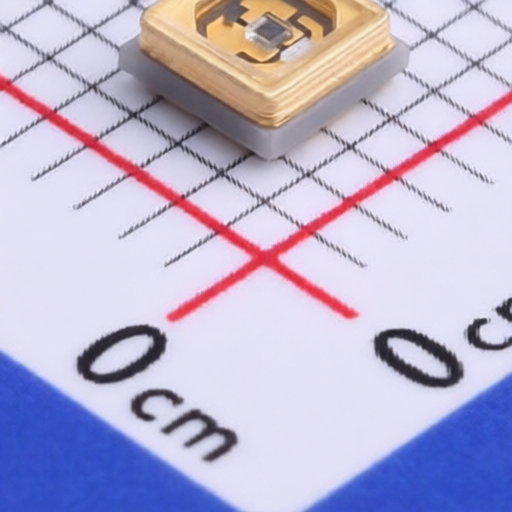

TUOZHAN TZ35UVA+UVC06-003
Manufacturer:
TUOZHAN
Asian Brands
Mfr. Part #:
TZ35UVA+UVC06-003
Package:
SMD3535-5P
Customer #:
Description:
10V 10mW SMD3535-5P LED Emitters - Infrared, UV, Visible RoHS
Datasheet:
TUOZHAN TZ35UVA+UVC06-003
Products Specifications
Manufacturer:
Package:
SMD3535-5P
Voltage - DC Reverse(Vr):
10V
Radiant Flux:
10mW
Reverse Leakage Current (Ir):
1uA
Current - DC Forward(If):
200mA@UVA;150mA@UVC
Peak Wavelength:
390nm~400nm@UVA;270nm~285nm@UVC
Viewing Angle:
120°
Voltage - Forward(Vf):
3.2V@UVA;6.5V@UVC
Pd - Power Dissipation:
500mW@UVA;700mW@UVC
Operating Temperature:
-40℃~+80℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
