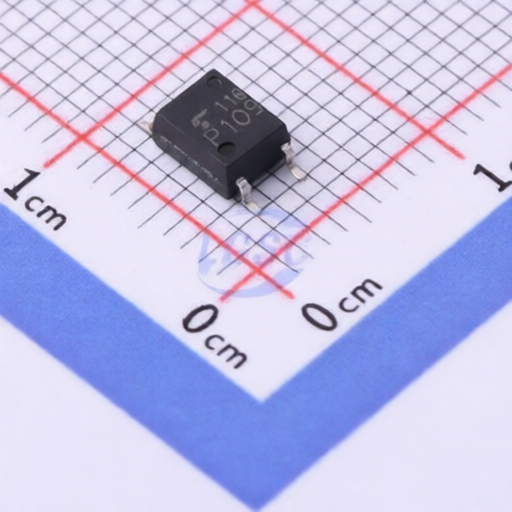

TOSHIBA TLP109(TPL,E
Manufacturer:
TOSHIBA
Mfr. Part #:
TLP109(TPL,E
Package:
SOIC-5-4.4mm
Customer #:
Key Attributes:
Photocoupler IRED & Photo-IC
Description:
6mA 5V 1.64V 500mV~30V DC SOIC-5-4.4mm Logic Output Optoisolators RoHS
Datasheet:
TOSHIBA TLP109(TPL,E
Products Specifications
Manufacturer:
Package:
SOIC-5-4.4mm
Power Dissipation:
40mW
Output Current:
6mA
Low Level Delay Time:
800ns
High Level Delay Time:
1us
Reverse Voltage:
5V
Current transfer ratio:
20%
Voltage - Forward(Vf):
1.64V
Voltage - Supply:
500mV~30V
Forward Current(If):
20mA
Operating Temperature:
-55℃~+125℃
CMTI(kV/us):
10kV/us
Number of Channels:
1
Input threshold current:
-
Isolation Voltage(Vrms):
3.75kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
