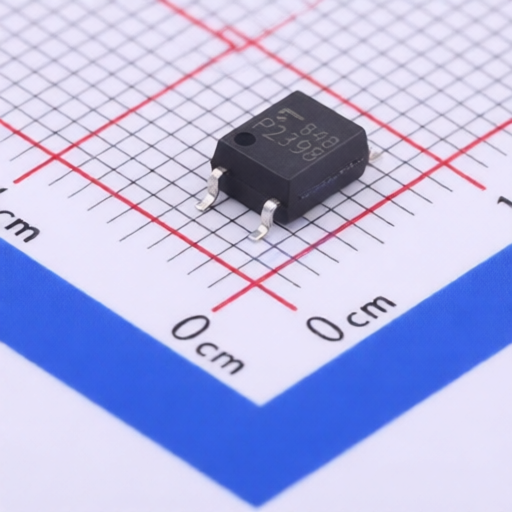

TOSHIBA TLP2398(TPL,E
Manufacturer:
TOSHIBA
Mfr. Part #:
TLP2398(TPL,E
Package:
SOP-5-175mil
Customer #:
Key Attributes:
Photocouplers GaAtAs Infrared LED&PhotoIC
Description:
1.5V 3V~20V DC SOP-5-175mil Logic Output Optoisolators RoHS
Datasheet:
TOSHIBA TLP2398(TPL,E
Products Specifications
Manufacturer:
Package:
SOP-5-175mil
Power Dissipation:
100mW
Low Level Delay Time:
95ns
High Level Delay Time:
105ns
Input threshold current:
2.3mA
Voltage - Forward(Vf):
1.5V
Voltage - Supply:
3V~20V
Forward Current(If):
20mA
Operating Temperature:
-40℃~+125℃
CMTI(kV/us):
20kV/us
Isolation Voltage(Vrms):
3.75kV
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
