TOSHIBA TLP5701B(D4CNTPE

TOSHIBA TLP5701B(D4CNTPE

Name: TOSHIBA TLP5701B(D4CNTPE
Brand: TOSHIBA

Manufacturer: TOSHIBA

Mfr. Part #: TLP5701B(D4CNTPE

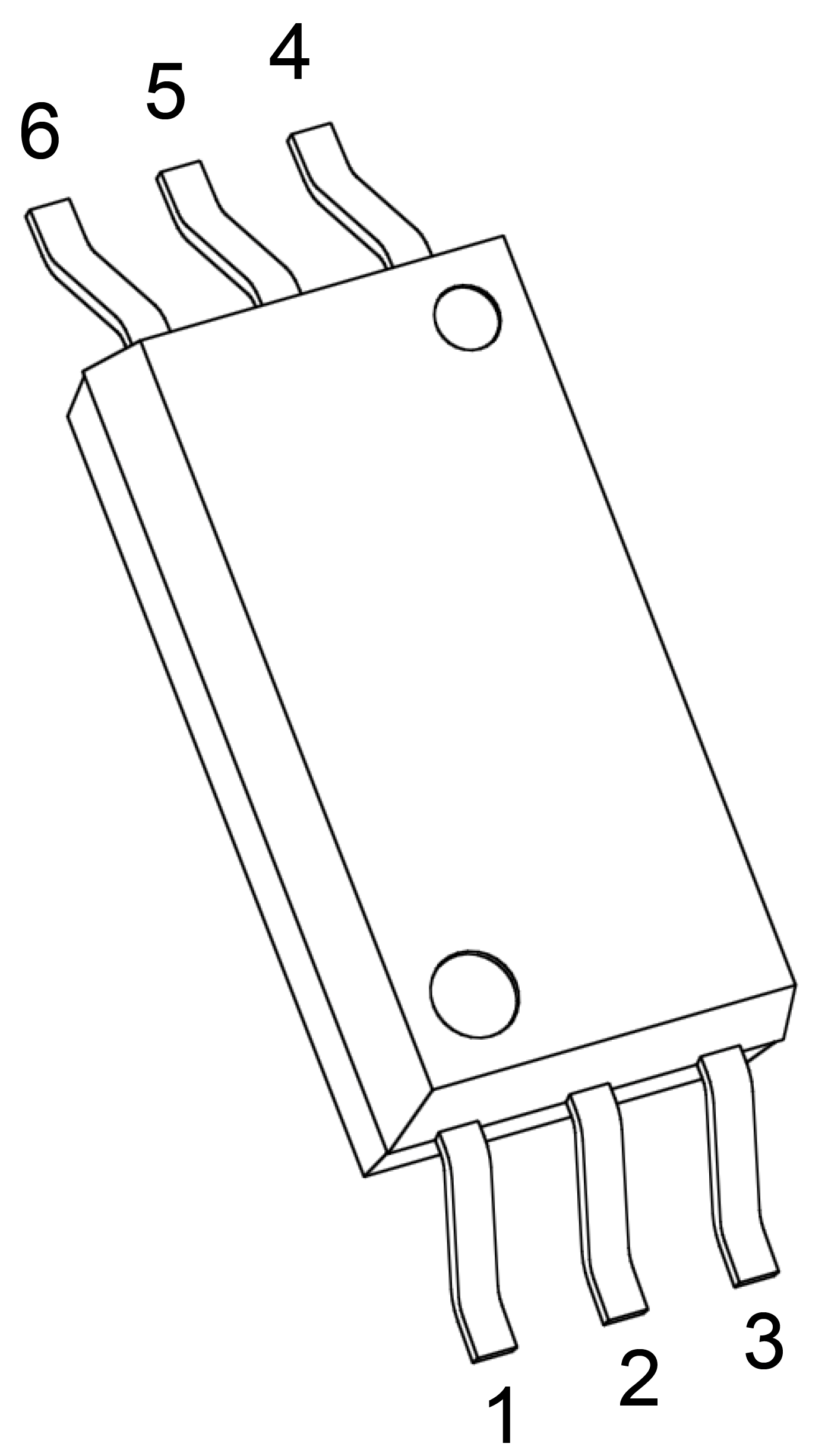

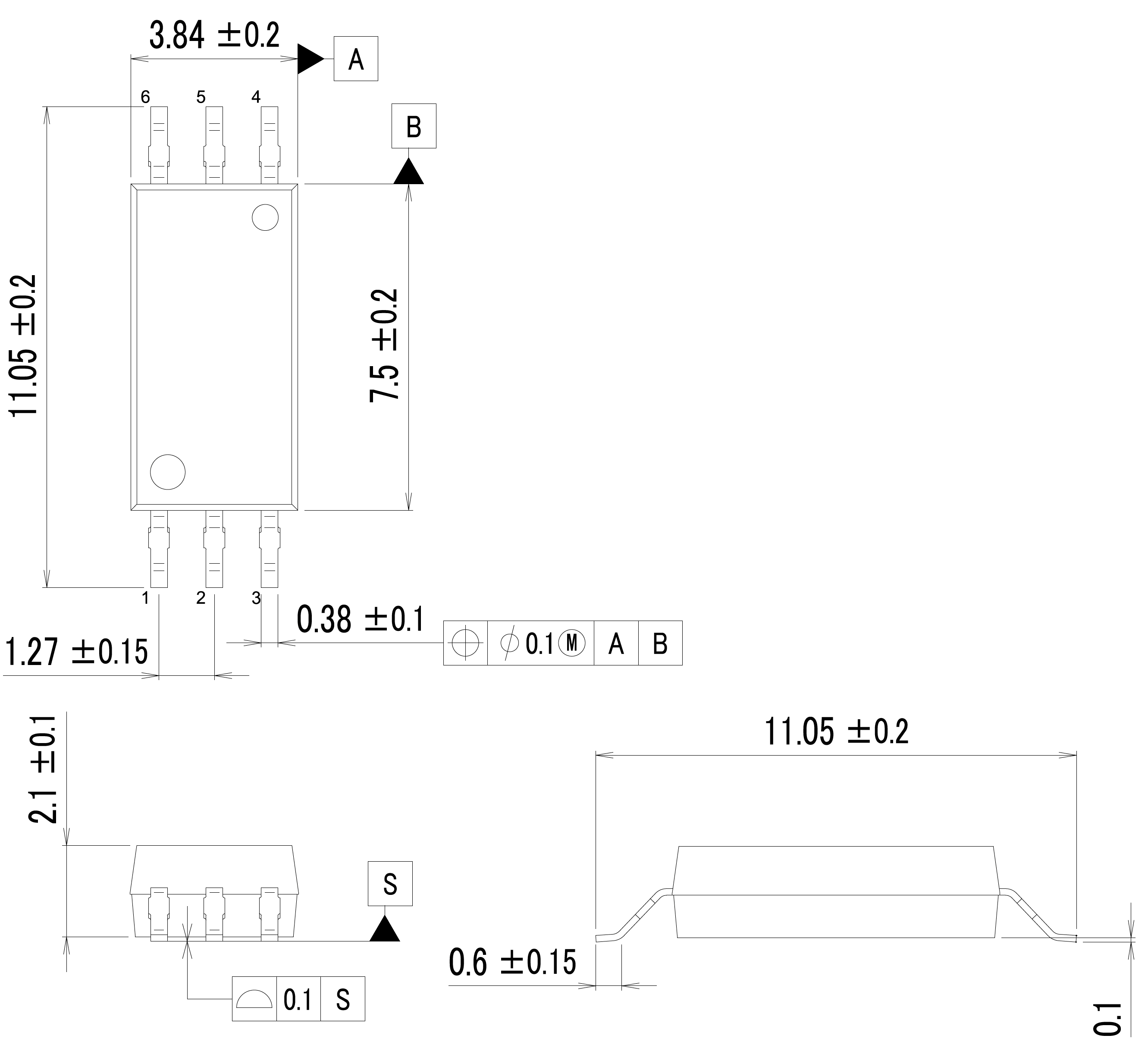

Package: SMD-6P

Customer #:

Key Attributes: TLP5701 Photocouplers Infrared LED & Photo IC

Description: 600mA 5V 10V~30V 50ns 50ns 1.57V SMD-6P Isolators - Gate Drivers RoHS

Datasheet: TOSHIBA TLP5701B(D4CNTPE

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

TOSHIBA

Package:

SMD-6P

Output Current:

600mA

Operating Temperature:

-40℃~+110℃

Isolation voltage(Vrms):

5kV

Propagation Delay(tpd):

500ns;500ns

Reverse Voltage:

Load Type:

MOSFET;IGBT

Voltage - Supply:

10V~30V

Rise Time:

50ns

Fall Time:

50ns

Voltage - Forward(Vf):

1.57V

CMTI(kV/us):

20kV/us

Number of Channels:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1500
Sales Unit	Piece
