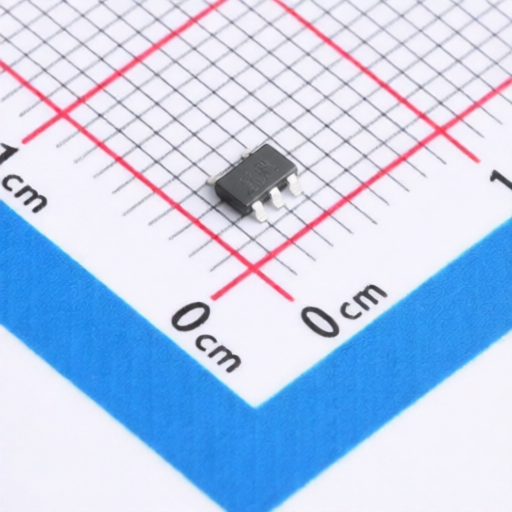

Tokmas 1EDN7512(TOKMAS)
Manufacturer:
Tokmas
Asian Brands
Mfr. Part #:
1EDN7512(TOKMAS)
Package:
TSOT-23-5
Customer #:
Key Attributes:
Single Channel High Speed Low Side Driver
Description:
4A 4.5V~24V TSOT-23-5 Gate Drivers RoHS
Datasheet:
Tokmas 1EDN7512(TOKMAS)
Products Specifications
Manufacturer:
Package:
TSOT-23-5
Input Logic Level - Low:
800mV~1V
Propagation Delay tpLH:
12ns
Propagation Delay tpHL:
12ns
Rise Time:
9ns
Peak Output Current(Sink):
4A
Features:
Under Voltage Protection;Over Temperature Protection
Fall Time:
6ns
Current - Output High(IOH):
4A
Load Type:
MOSFET;IGBT
Voltage - Supply:
4.5V~24V
Input Logic Level - High:
2.1V~2.4V
Operating Temperature:
-40℃~+150℃
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
