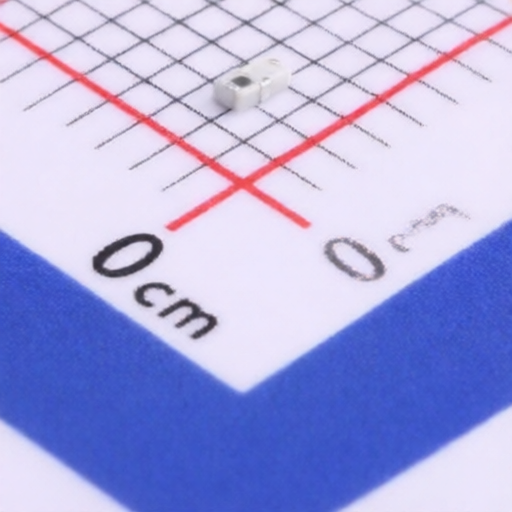

TDK DPX165850DT-8017A1
Manufacturer:
TDK
Mfr. Part #:
DPX165850DT-8017A1
Package:
SMD-4P,1.6x0.8mm
Customer #:
Key Attributes:
Multilayer Diplexer For 2400 - 2500MHz/4900 - 5850MHz
Description:
20dB 20dB SMD-4P,1.6x0.8mm RF Multiplexers RoHS
Datasheet:
TDK DPX165850DT-8017A1
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,1.6x0.8mm
High band insertion loss (Max):
0.6dB
Low Band Attenuation (Min):
20dB
Low band return loss (Min):
12.74dB
Operating Temperature:
-40℃~+85℃
Low band insertion loss (Max):
0.4dB
High Band Attenuation (Min):
20dB
High band return loss (Min):
10.16dB
High band range:
4.9GHz~5.85GHz
Low band range:
2.4GHz~2.5GHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
