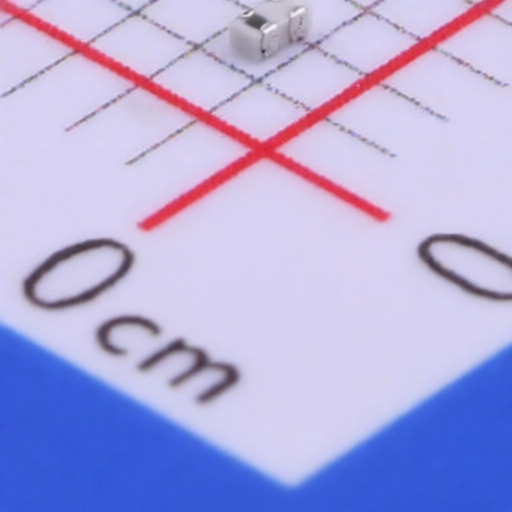

TDK HHM1946A1
Manufacturer:
TDK
Mfr. Part #:
HHM1946A1
Package:
SMD-4P,1x0.5mm
Customer #:
Key Attributes:
Multilayer Balun For 2300-2700MHz
Description:
10dB 180°@±10° 2.3GHz~2.7GHz 50Ω:100Ω 0.5dB SMD-4P,1x0.5mm Balun RoHS
Datasheet:
TDK HHM1946A1
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,1x0.5mm
Amplitude Balance (Max):
2.5dB
Return Loss(Min):
10dB
Phase Difference:
180°@±10°
Frequency Range:
2.3GHz~2.7GHz
Operating Temperature:
-40℃~+85℃
Impedance - Unbalanced/Balanced:
50Ω:100Ω
Insertion Loss:
0.5dB
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 10000 |
| Sales Unit | Piece |
