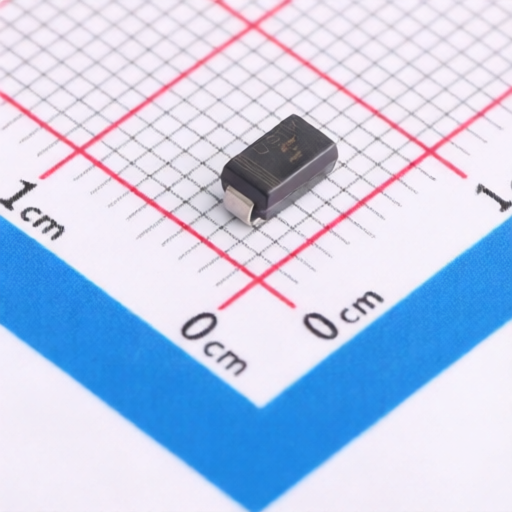

SUNMATE Elec US1M
Manufacturer:
SUNMATE Elec
Asian Brands
Mfr. Part #:
US1M
Package:
SMA(DO-214AC)
Customer #:
Key Attributes:
Diode 1kV 1A SMA(DO-214AC)
Description:
30A 75ns 1kV Independent 1.3V@1A 1A SMA(DO-214AC) Single Diodes RoHS
Datasheet:
SUNMATE Elec US1M
Products Specifications
Manufacturer:
Package:
SMA(DO-214AC)
Non-Repetitive Peak Forward Surge Current:
30A
Reverse Recovery Time (trr):
75ns
Operating Junction Temperature Range:
-65℃~+150℃
Voltage - DC Reverse (Vr) (Max):
1kV
Diode Configuration:
Independent
Reverse Leakage Current (Ir):
5uA@1kV
Voltage - Forward(Vf@If):
1.3V@1A
Current - Rectified:
1A
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
SUNMATE Elec
537 Products
Sunmate Electronics Co., Ltd.
(hereinafter referred to as "SUNMATE Elec") is one of the world's leading manufacturers of semiconductor discrete components. It operates as a modern enterprise specializing in R&D, production, and sales. The company’s primary products include transient suppression diodes (TVS), Zener diodes, Schottky diodes, super fast recovery diodes (SF), high-efficiency rectifier diodes (HER), fast recovery diodes (FR), ordinary rectifier diodes (STD), discharge tubes (TSS), trigger diodes, and bridge stacks. These components are widely used in various fields such as power supply, household appliances, lighting, security, networking, consumer electronics, renewable energy, industrial control, and automotive electronics. Since its establishment, SUNMATE has consistently adhered to the principles of "quality first" and "customer first." The company has successfully obtained ISO9001 quality system certification by focusing on breakthroughs in various aspects of its operat
