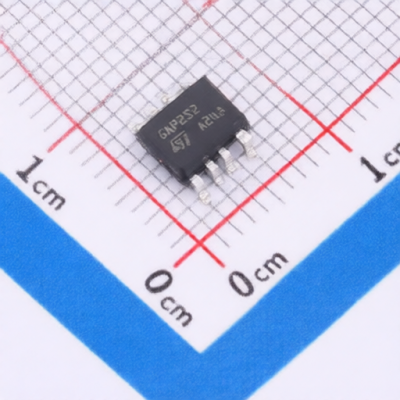

ST STGAP2SM
Manufacturer:
ST
Mfr. Part #:
STGAP2SM
Package:
SO-8
Customer #:
Key Attributes:
Galvanically isolated 4 A single gate driver
Description:
5A 30ns 30ns 5A SO-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SO-8
Quiescent Current:
1.3mA
Operating Temperature:
-40℃~+125℃@(Tj)
Propagation Delay(tpd):
90ns;90ns
Isolation voltage(Vrms):
2828
Current - Output High(IOH):
5A
Voltage - Supply:
3.1V~5.5V;9.6V~26V
Rise Time:
30ns
Fall Time:
30ns
CMTI(kV/us):
100kV/us
Number of Channels:
1
Current - Output Low(IOL):
5A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ST
9271 Products
STMicroelectronics is a global independent semiconductor company and a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions, STMicroelectronics is at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
