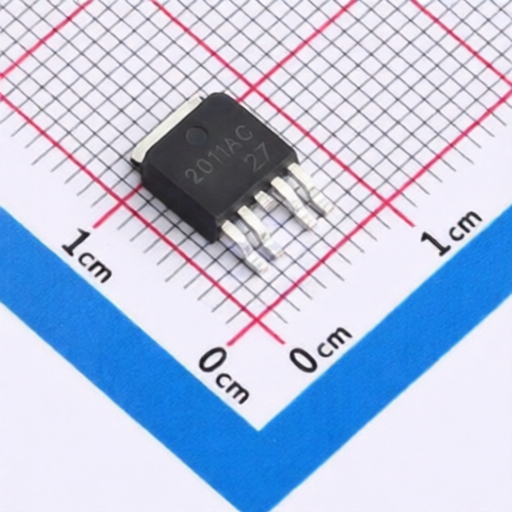

Siliup SP2011ACTM
Manufacturer:
Siliup
Asian Brands
Mfr. Part #:
SP2011ACTM
Package:
TO-252-4L
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 20V 38A TO-252-4L
Description:
N-Channel+P-Channel 20V 38A 32.8W Surface Mount TO-252-4L
Datasheet:
Siliup SP2011ACTM
Products Specifications
Manufacturer:
Package:
TO-252-4L
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
35A;38A
RDS(on):
8mΩ@4.5V;9mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
700mV@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
146pF;274pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
178pF;332pF
Pd - Power Dissipation:
32.8W
Input Capacitance(Ciss):
1.196nF;2.872nF
Gate Charge(Qg):
13.4nC@4.5V;72.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
