Siliup SP60N05GTH
Manufacturer:
Siliup
Asian Brands
Mfr. Part #:
SP60N05GTH

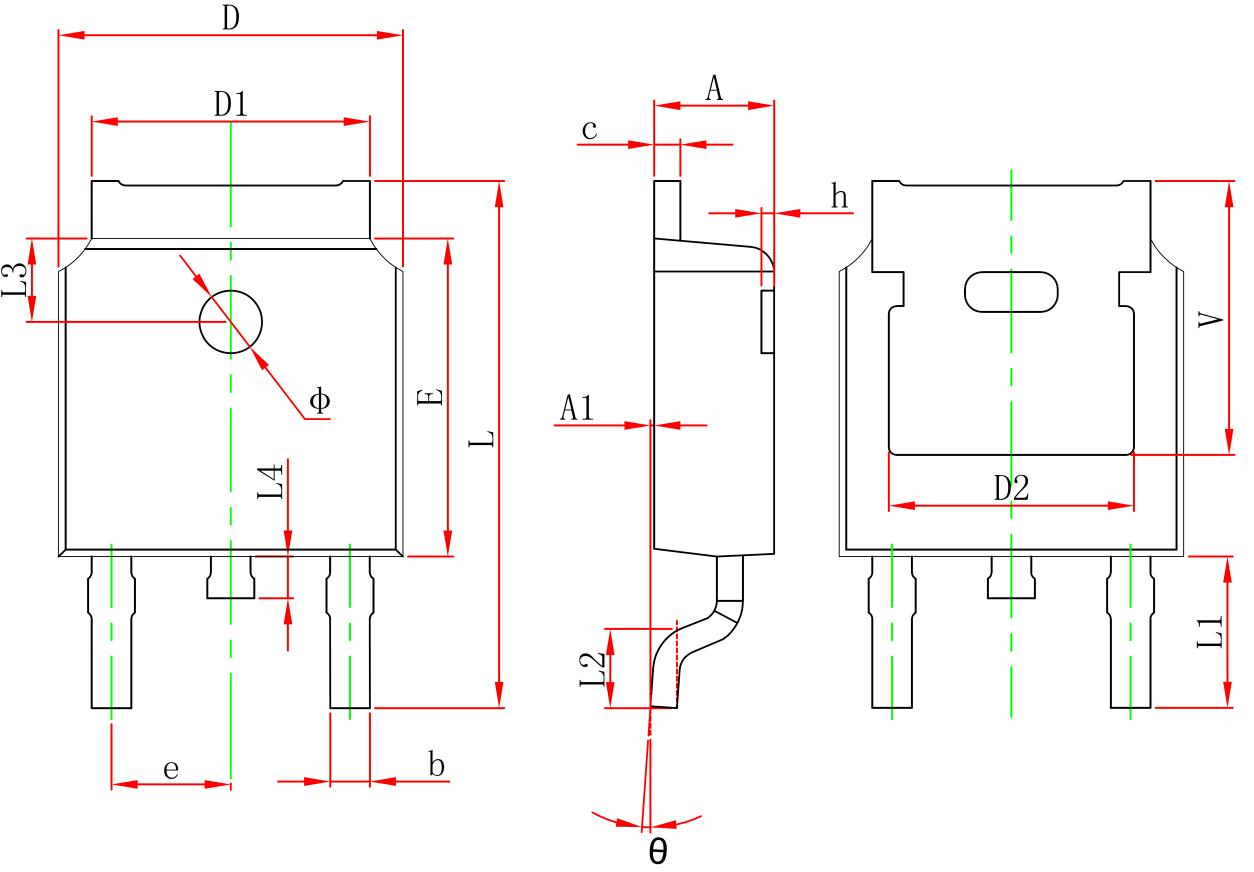

Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 60V 90A TO-252
Description:
N-Channel 60V 90A 78W Surface Mount TO-252
Datasheet:
Siliup SP60N05GTH
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
90A
RDS(on):
4.8mΩ@10V;5.5mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.6V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
19pF
Number:
1 N-channel
Output Capacitance(Coss):
660pF
Pd - Power Dissipation:
78W
Input Capacitance(Ciss):
2.304nF
Gate Charge(Qg):
37.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
