Siliup SP020N08GHTQ
Manufacturer:
Siliup
Asian Brands
Mfr. Part #:
SP020N08GHTQ
Package:

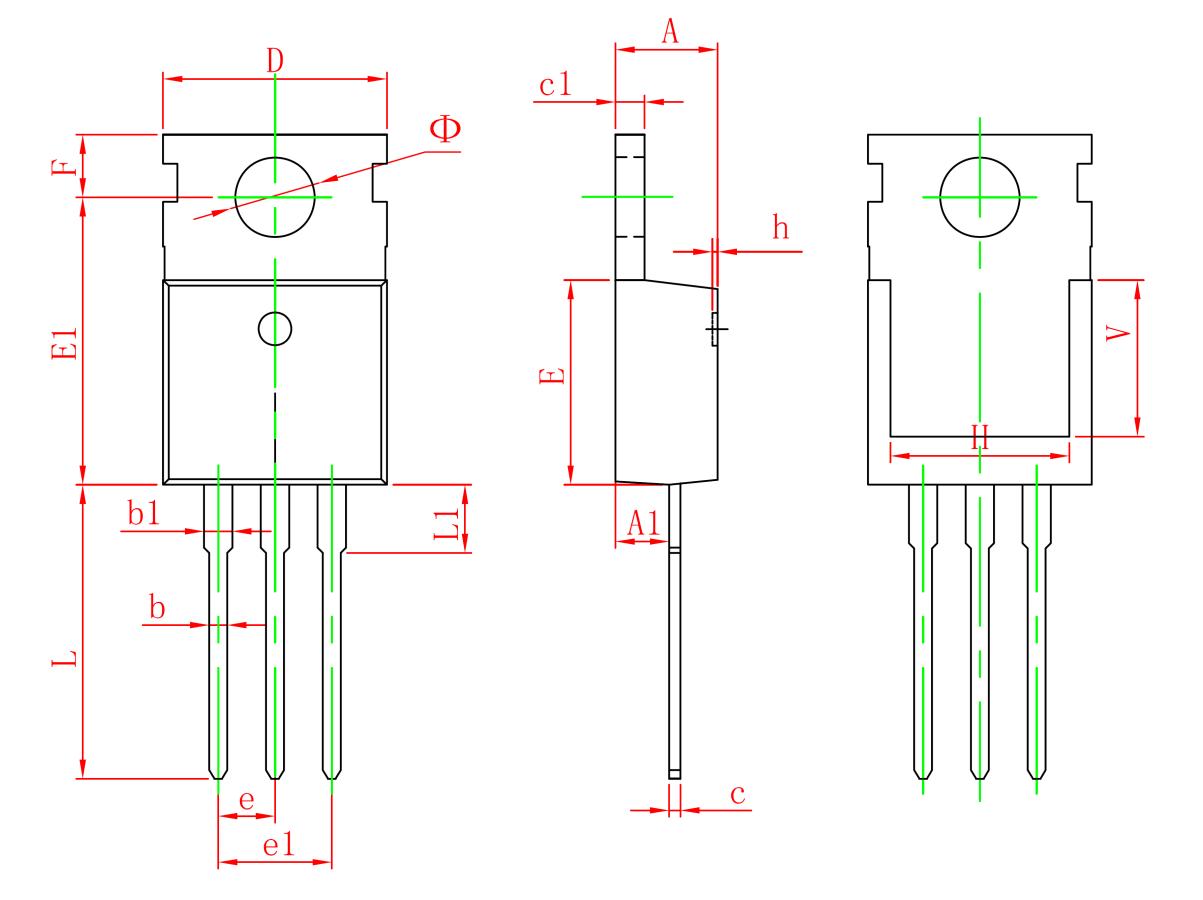

TO-220-3L
Customer #:
Key Attributes:
MOSFET 200V 120A TO-220-3L
Description:
200V 120A 280W Through Hole TO-220-3L
Datasheet:
Siliup SP020N08GHTQ
Products Specifications
Manufacturer:
Package:
TO-220-3L
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
120A
RDS(on):
11mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Reverse Transfer Capacitance (Crss@Vds):
27pF
Number:
1 N-channel
Pd - Power Dissipation:
280W
Output Capacitance(Coss):
410pF
Input Capacitance(Ciss):
5.3nF
Gate Charge(Qg):
78nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
