Sichainsemi S1P05R120HBB
Manufacturer:
Sichainsemi
Asian Brands
Mfr. Part #:
S1P05R120HBB
Package:

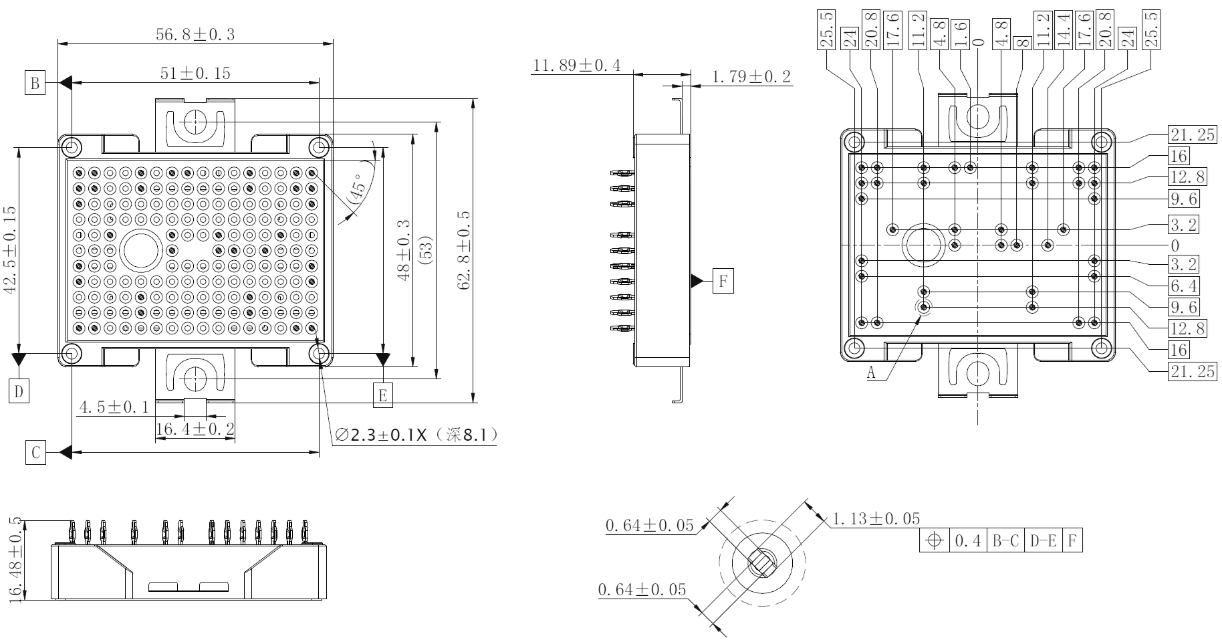

Through Hole,62.8x56.8mm
Customer #:
Key Attributes:
SICFET N-CH 1.2kV 240A Through Hole,62.8x56.8mm
Description:
2 N-Channel 1.2kV 240A Through Hole,62.8x56.8mm
Datasheet:
Sichainsemi S1P05R120HBB
Products Specifications
Manufacturer:
Package:
Through Hole,62.8x56.8mm
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
240A
Operating Temperature -:
-40℃~+175℃
Gate Threshold Voltage (Vgs(th)):
2.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
0.06pF
Input Capacitance(Ciss):
16.2pF
Gate Charge(Qg):
576nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Sichainsemi
45 Products
Sichainsemi, established in March 2021, is a high-tech chip company based in Ningbo, focusing on silicon carbide (SiC) semiconductors. The company primarily produces SiC power devices, including diodes and MOSFETs.
