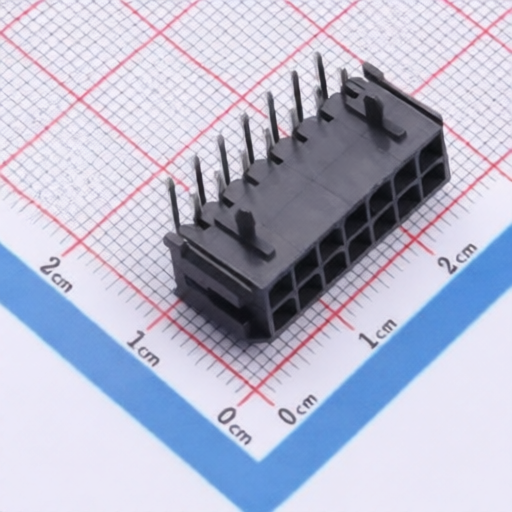

SHOU HAN MX3.0-2x7PWZ
Manufacturer:
SHOU HAN
Asian Brands
Mfr. Part #:
MX3.0-2x7PWZ
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Description:
2x7P 2 3mm 14P -25℃~+85℃ 7 5A 250V 3mm Through Hole,Right Angle,P=3mm Headers, Male Pins RoHS
Datasheet:
SHOU HAN MX3.0-2x7PWZ
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Pins Structure:
2x7P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-2
Number of Rows:
2
Mounting Type:
Right Angle
Pitch:
3mm
Number of PINs:
14P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
7
Contact Plating:
Tin
Current Rating:
5A
Voltage Rating (Max):
250V
X-Length of Bottom Edge on Board (Spacing Line):
24.65mm
Row Spacing:
3mm
Z-Height of the Board:
7.4mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
SHOU HAN
2840 Products
Shenzhen Shouhan Technology Co., Ltd.
(hereinafter referred to as "SHOU HAN") is a company specializing in the research and development of switches, sockets, and other electronic components. The company mainly produces touch switches, toggle switches, micro switches, and TYPE-C. SHOUHAN adheres to the development concept and purpose of "excellent quality, reputation first, and service first." The products have passed CE, REACH, and ROHS2.0 certification. SHOUHAN is committed to providing customers with fast and reliable delivery methods to protect the rights and interests of customers.
