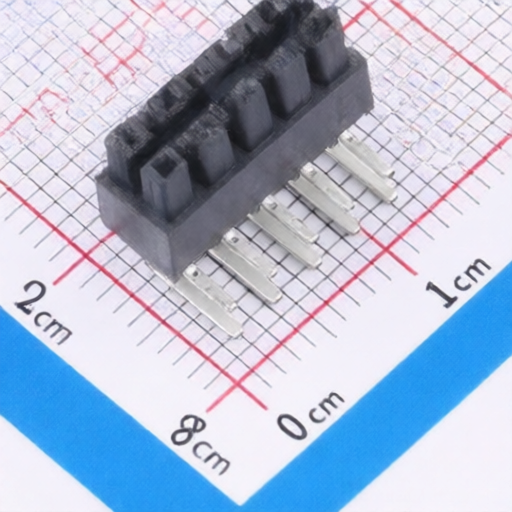

Samtec IPS1-105-01-L-D-RA
Manufacturer:
Samtec
Mfr. Part #:
IPS1-105-01-L-D-RA
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 10POS 2.54mm DUAL ROW TH R/A
Description:
-55℃~+125℃ Right Angle 10P 4.95mm Tin Side 2.54mm 2 Square Hole 2.54mm Through Hole,Right Angle,P=2.54mm Headers, Receptacles, Female Sockets RoHS
Datasheet:
Samtec IPS1-105-01-L-D-RA
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Voltage Rating:
1.2kV
Operating Temperature:
-55℃~+125℃
Mounting Type:
Right Angle
Number of Pins:
10P
Insulation Height:
4.95mm
Contact Plating:
Tin
Holes Direction:
Side
Pitch:
2.54mm
Number of Rows:
2
Circular Hole / Square Hole:
Square Hole
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 43 |
| Sales Unit | Piece |
