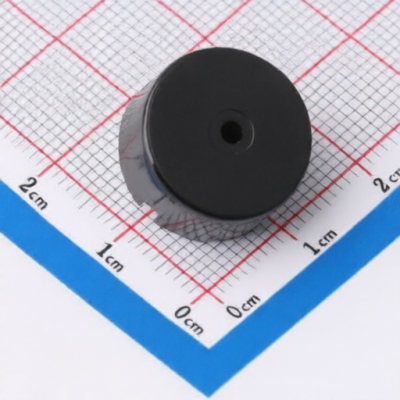

S&S SFN-1708-0520-35P10
Manufacturer:
S&S
Asian Brands
Mfr. Part #:
SFN-1708-0520-35P10
Package:
Through Hole,D=17mm
Customer #:
Key Attributes:
BUZZER PIEZO 30V 17mm TH
Description:
Buzzers Passive (Externally Driven) Piezoelectric 30V 2kHz 80dB Through Hole,D=17mm
Products Specifications
Manufacturer:
Package:
Through Hole,D=17mm
Operating Temperature:
-20℃~+70℃
Driver Circuitry:
Passive (Externally Driven)
Diameter(φD):
17mm
Resonant Frequency:
2kHz
Technology:
Piezoelectric
Current Consumption:
5mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 8 |
| Multiple | 8 |
| Standard Packaging | 64 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8531801001 |
| USHTS | 8531801500 |
| TARIC | 8531804010 |
| CAHTS | 8531800010 |
| BRHTS | 85318000 |
| INHTS | 85318000 |
| MXHTS | 8531.80.01 |
