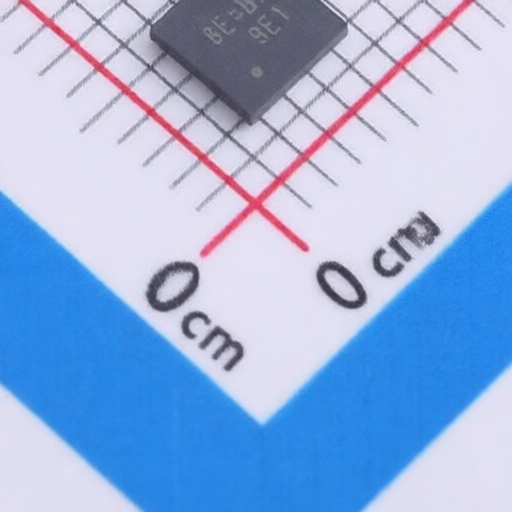

RICHTEK RTQ2105GQWT-QA
Manufacturer:
RICHTEK
Asian Brands
Mfr. Part #:
RTQ2105GQWT-QA
Package:
WQFN-24(4x4)
Customer #:
Key Attributes:
36V Input, 3A High Efficiency Synchronous Step-Down Converter
Description:
300kHz~2.2MHz Buck Adjustable 800mV~36V 3A WQFN-24(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
RICHTEK RTQ2105GQWT-QA
Products Specifications
Category:
Manufacturer:
Package:
WQFN-24(4x4)
Operating Temperature:
-40℃~+150℃
Frequency - Switching:
300kHz~2.2MHz
Function:
Buck
Number of Outputs:
1
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
3V~36V
Switch tube (built-in/external):
Built-in
Output Voltage:
800mV~36V
Output Current:
3A
Quiescent Current:
40uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
RICHTEK
1195 Products
Richtek Technology Corporation is one of the world’s leading analog IC companies. The company consistently delivers inventive power management solutions that improve the performance of consumer electronics, computers, and communications equipment. Richtek adds value to end equipment by synthesizing technological innovation, uncompromised quality, and devotion to customer service. Founded in 1998, the Company is headquartered in Taiwan with additional offices in Asia, the U.S., and Europe.
