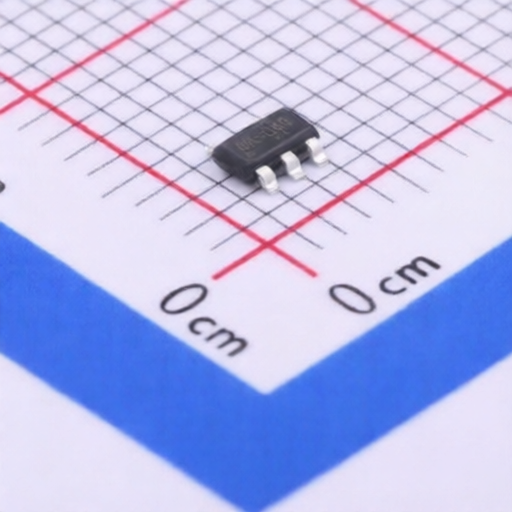

RICHTEK RT9742CGJ5(Z30)
Manufacturer:
RICHTEK
Asian Brands
Mfr. Part #:
RT9742CGJ5(Z30)
Package:
SOT-23-5
Customer #:
Key Attributes:
High-Side Power Switches with Flag
Description:
1 2A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
Datasheet:
RICHTEK RT9742CGJ5(Z30)
Products Specifications
Category:
Manufacturer:
Package:
SOT-23-5
Operating Temperature:
-40℃~+125℃
Features:
Overcurrent Protection(OCP);Short-Circuit Protection(SCP);Over Temperature Protection;Undervoltage Protection(UVP)
number of channels:
1
Maximum Continuous Current:
2A
Control Input Logic:
Active High
RDS(on):
55mΩ
Operating Voltage:
2.7V~6V
Type:
High Side Switch
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
RICHTEK
1195 Products
Richtek Technology Corporation is one of the world’s leading analog IC companies. The company consistently delivers inventive power management solutions that improve the performance of consumer electronics, computers, and communications equipment. Richtek adds value to end equipment by synthesizing technological innovation, uncompromised quality, and devotion to customer service. Founded in 1998, the Company is headquartered in Taiwan with additional offices in Asia, the U.S., and Europe.
